Warning Indicators

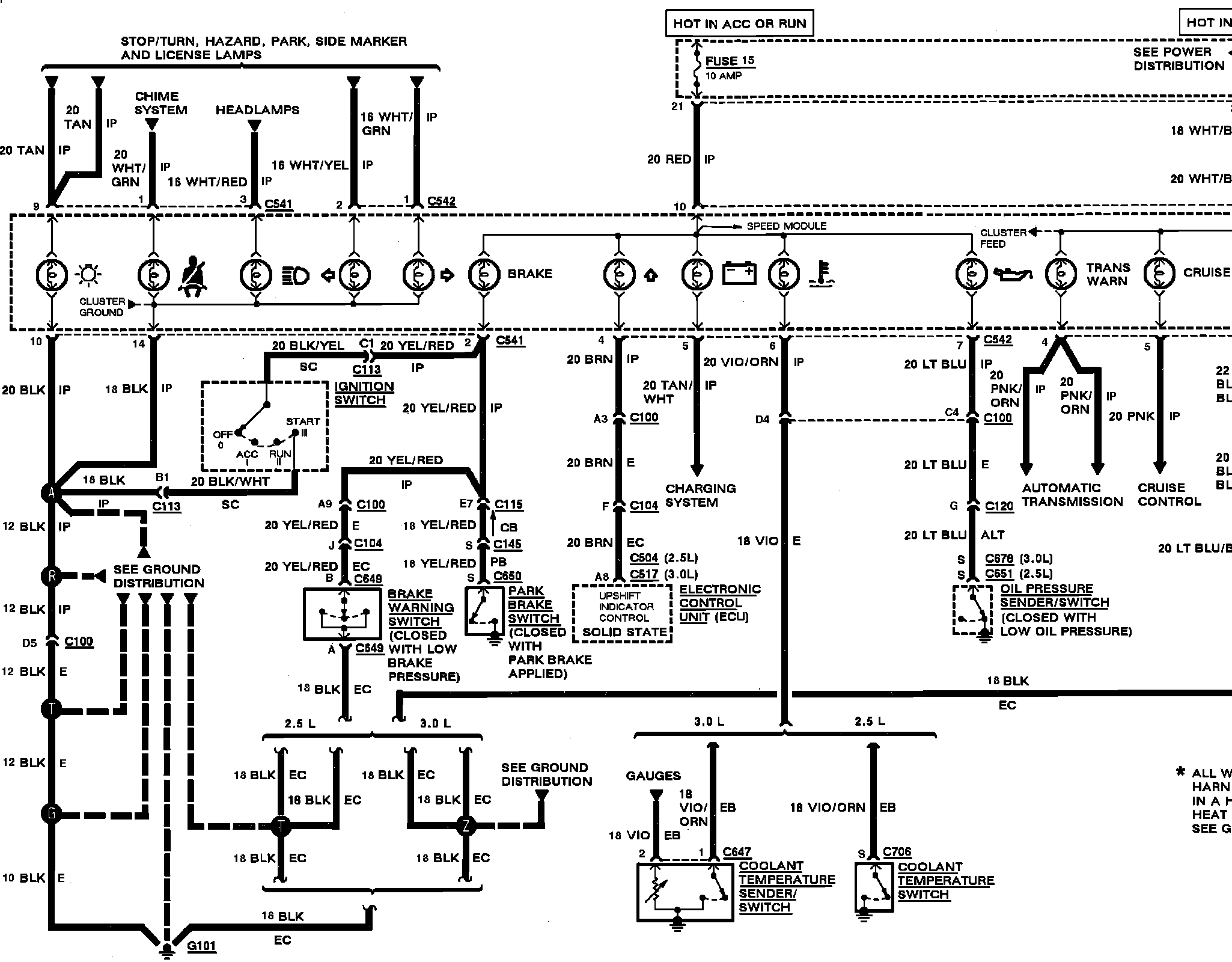

Instrument Panel Indicators Wiring Circuit. Digital Cluster:

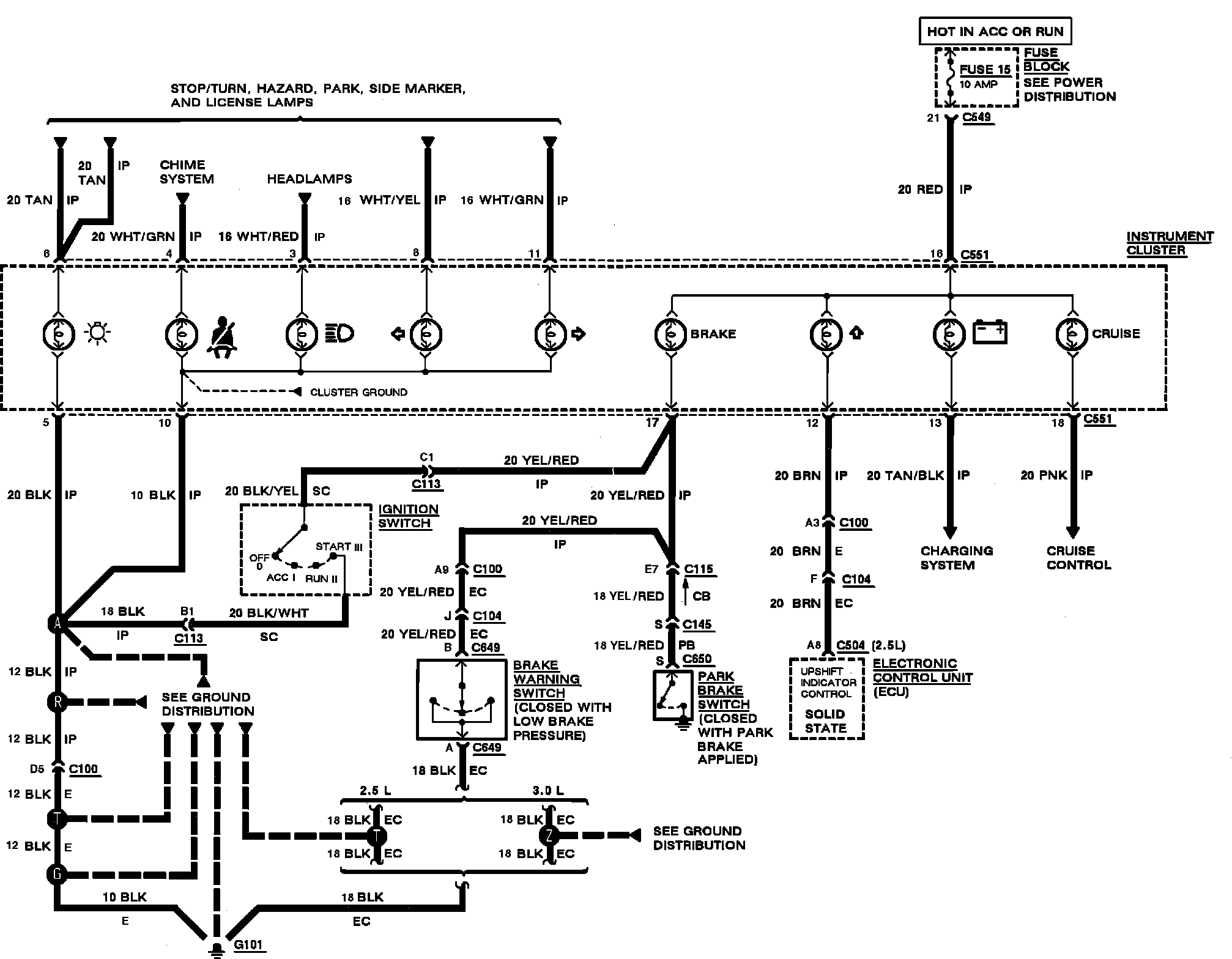

�"HInstrument Panel Indicators Wiring Circuit. Analog Cluster:
