Leaf Spring Replacement

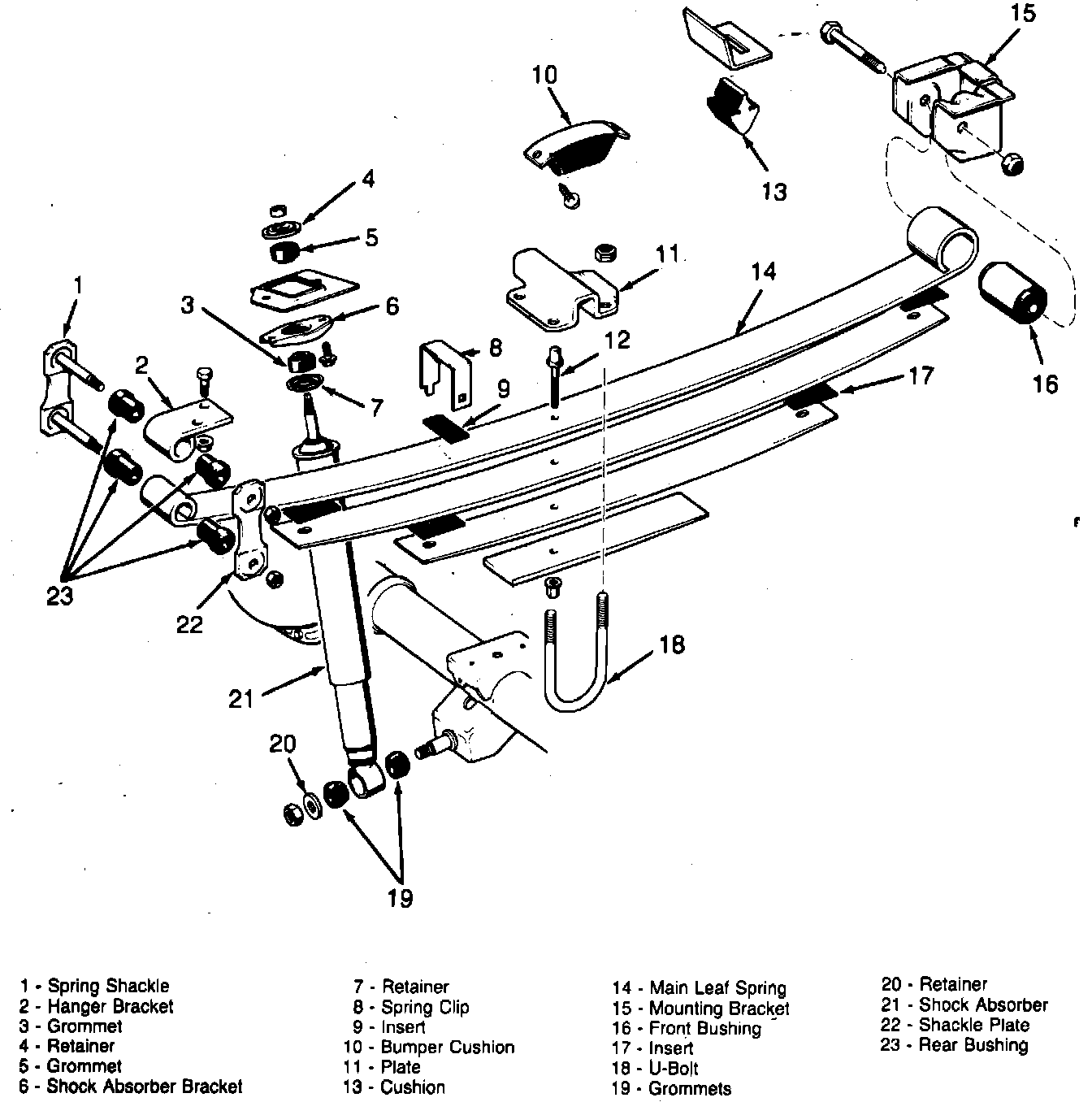

Fig. 2 Rear suspension assembly. Eagle:

1. Support rear axle, removing tension from springs.
2. Disconnect lower end of shock absorber from stud on mounting bracket.
3. Remove U-bolts securing spring plate and spring to axle tube.
4. Disassemble rear shackle and remove eye bolt from spring forward mounting bracket.
5. Reverse procedure to install. Replace bushings as necessary.
