Suspension: Description and Operation

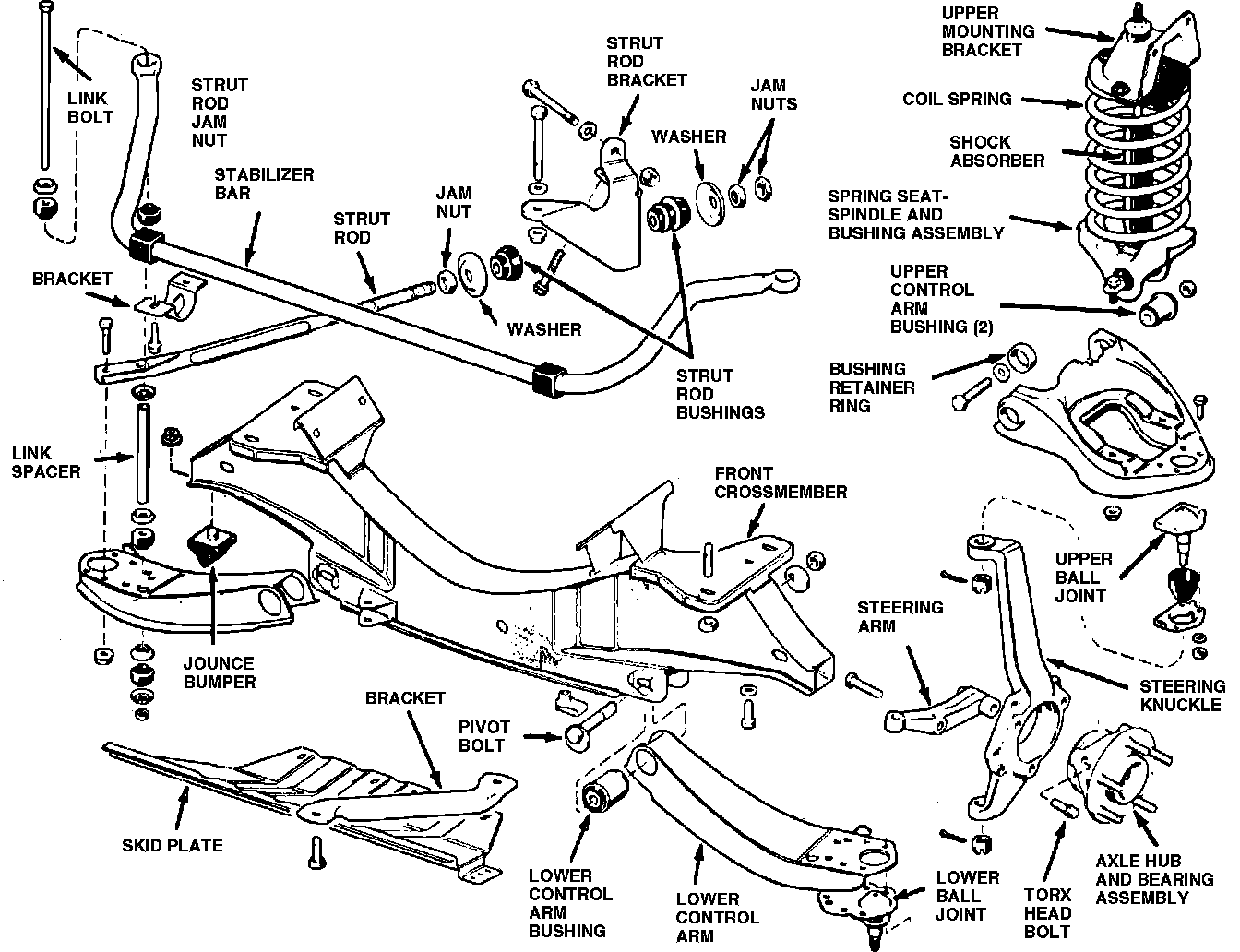

Fig. 1 Front suspension view. Eagle:

EAGLE
These models use an independent front coil spring suspension system. The wheels are suspended on upper and lower control arms with a coil spring located between the upper control arm and a spring seat beneath the wheel housing panels.
Direct acting telescoping shock absorbers are located inside the coil springs. A stabilizer bar attached to each control arm with stabilizer links provides stability, and a dampener dampens steering oscillations.
