Home >> Eagle >> 1982 >> Eagle L4-151 2.5L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Testing and Inspection >> Delco-Remy Starters >> Slow Cranking, Solenoid Clicks or Chatters

Slow Cranking, Solenoid Clicks or Chatters

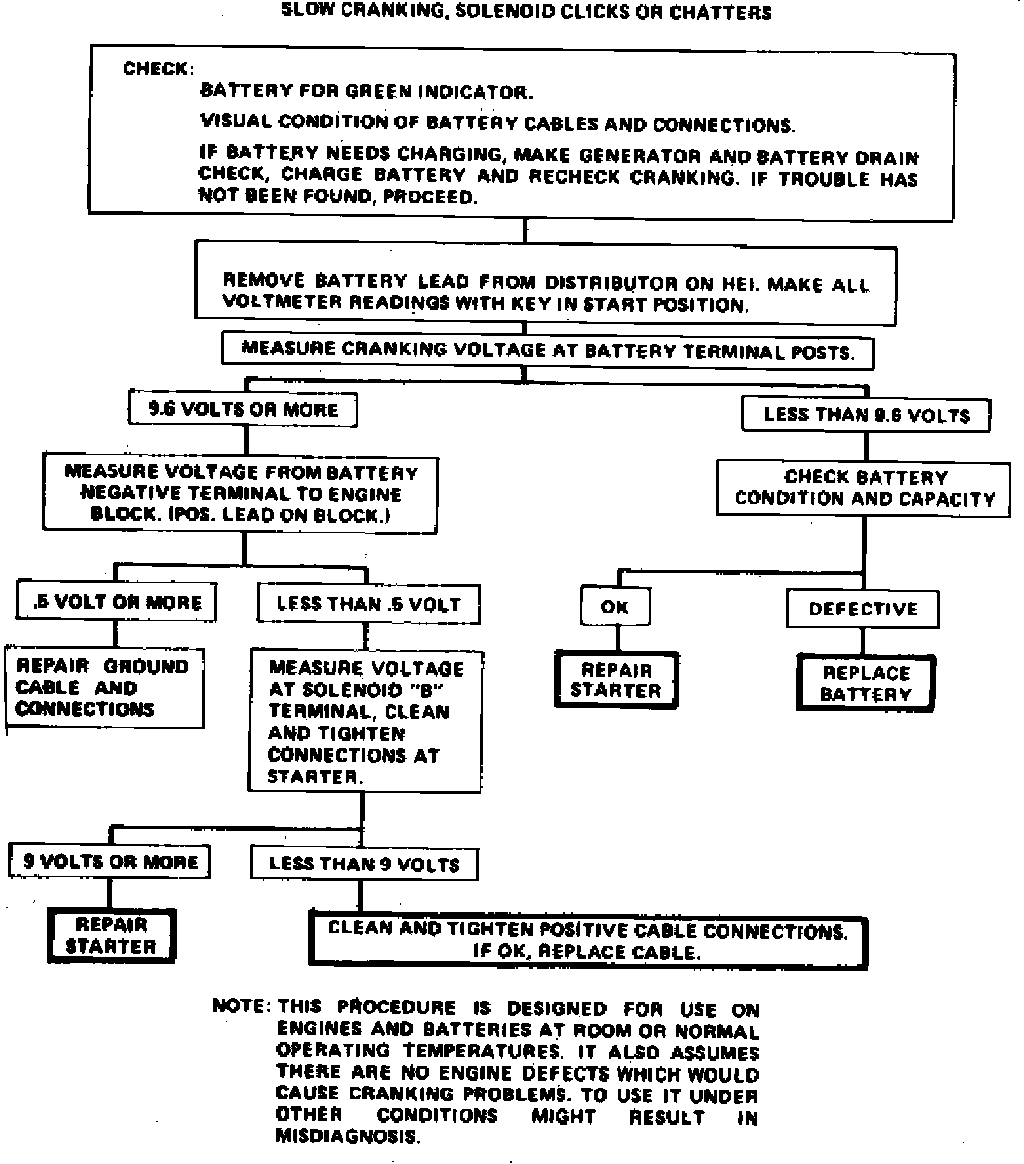

Fig. 2 Delco-Remy starter motor diagnosis:
