Fast Idle Cam: Adjustments

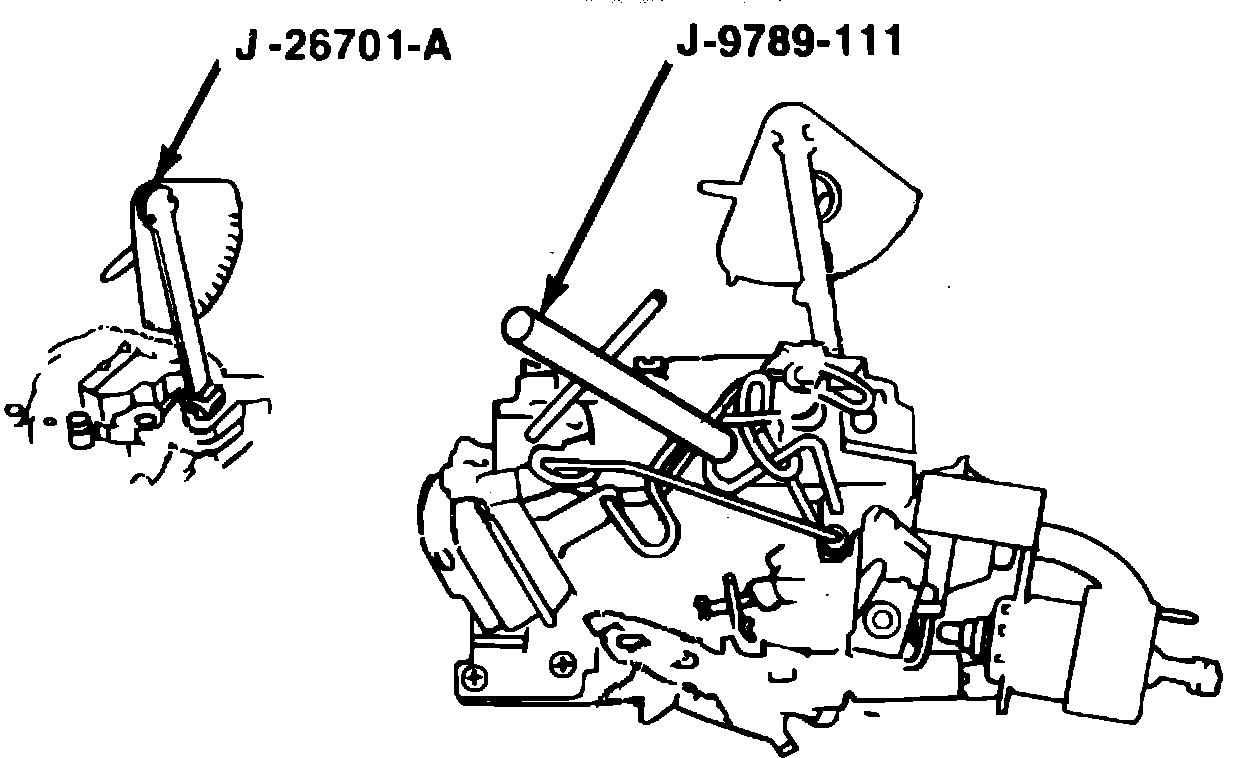

Fig. 6 Fast idle cam position adjustment:

1. Before performing the fast idle cam position adjust, then choke coil lever and fast idle adjustments must be completed.
2. Place choke valve in the closed position, then if bubble is not centered, adjust by bending fast idle cam rod with tool J-9789-111, Fig. 6.
