Secondary Diaphragm: Adjustments

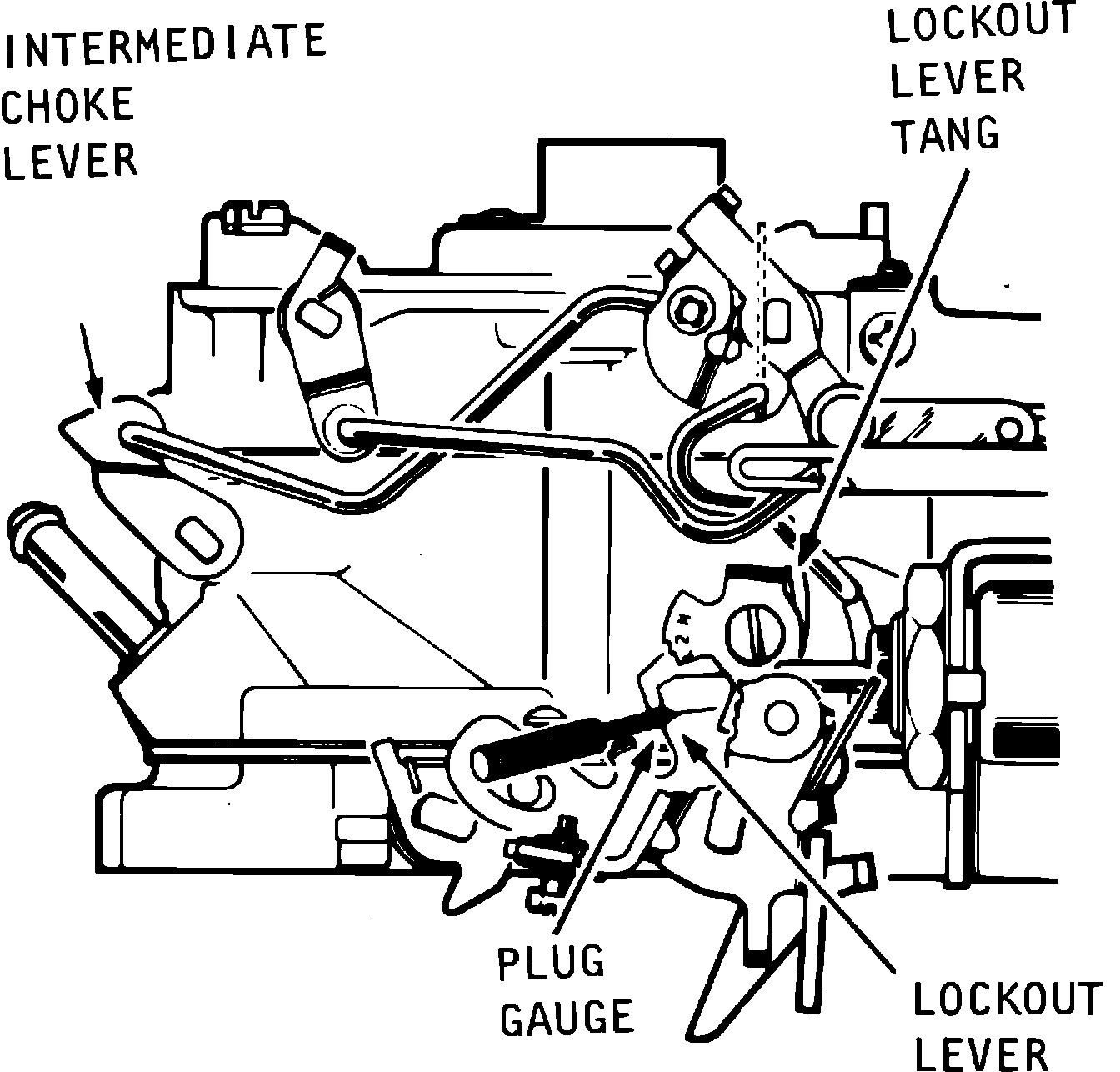

Fig. 11 Secondary link adjustment:

1. With choke valve in the wide open position, open throttle lever until end of secondary actuator lever is opposite toe of lockout lever and check clearance using a suitable gauge, Fig. 11.
2. If clearance is not 0.025 inch, adjust by bending lockout lever tang contacts fast idle cam.
