Choke Unloader: Adjustments

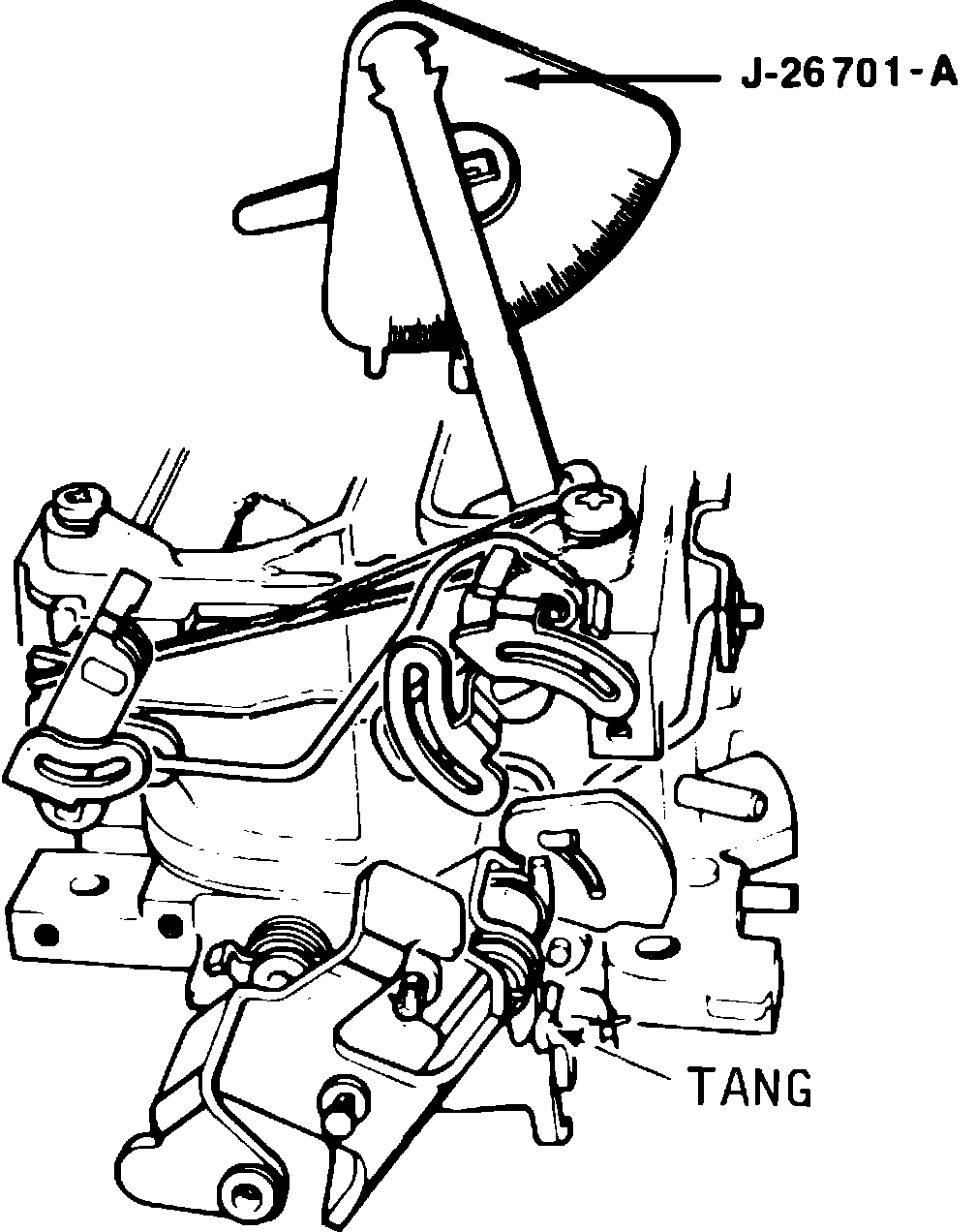

Fig. 12 Choke unloader adjustment:

1. Attach a rubber band to intermediate choke lever, then open throttle and allow choke valve to close.
2. Position gauge J-26701-A on choke valve and place degree scale at specified degree setting.
3. While holding throttle lever in the wide open position, push choke shaft lever to open choke valve so that it makes contact with the black closing tang.
4. If necessary, adjust by bending tang until bubble is centered in gauge, Fig. 12.
