Without A/C

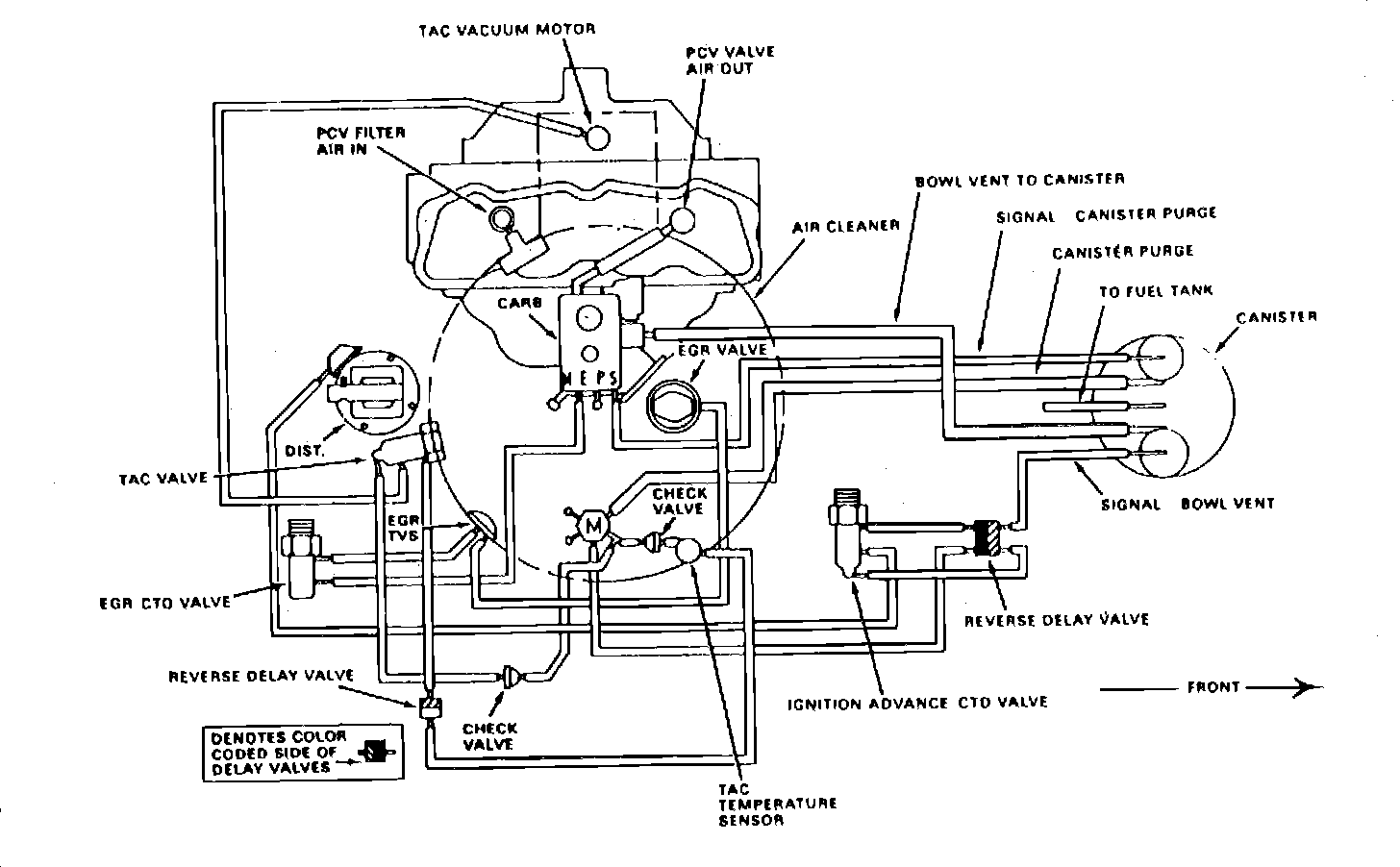

Fig. 7 1982 AMC Eagle 4-151 with manual trans., less A/C, High Alt. & exc. Calif.; Eagle SX/4 4-151,less A/C:
