Home >> Eagle >> 1982 >> Eagle L4-151 2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Related Tests, Information and Procedures >> Chart 1-C4 System Operational Test

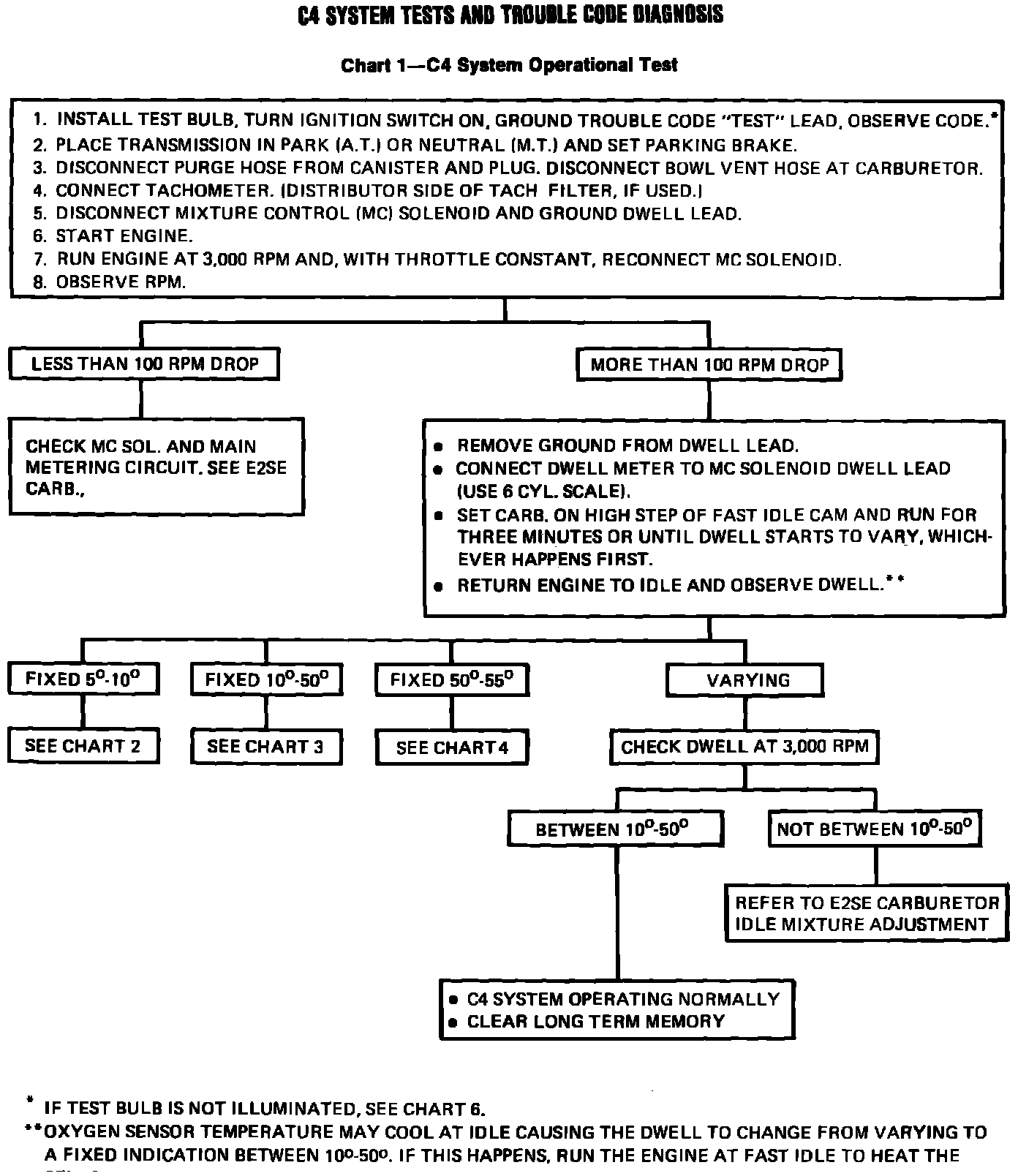

Chart 1-C4 System Operational Test

Chart 1-C4 System Operational Test:
