Test 6 - Mixture Control (MC) Solenoid Test
Test 6 - Mixture Control (MC) Solenoid Test

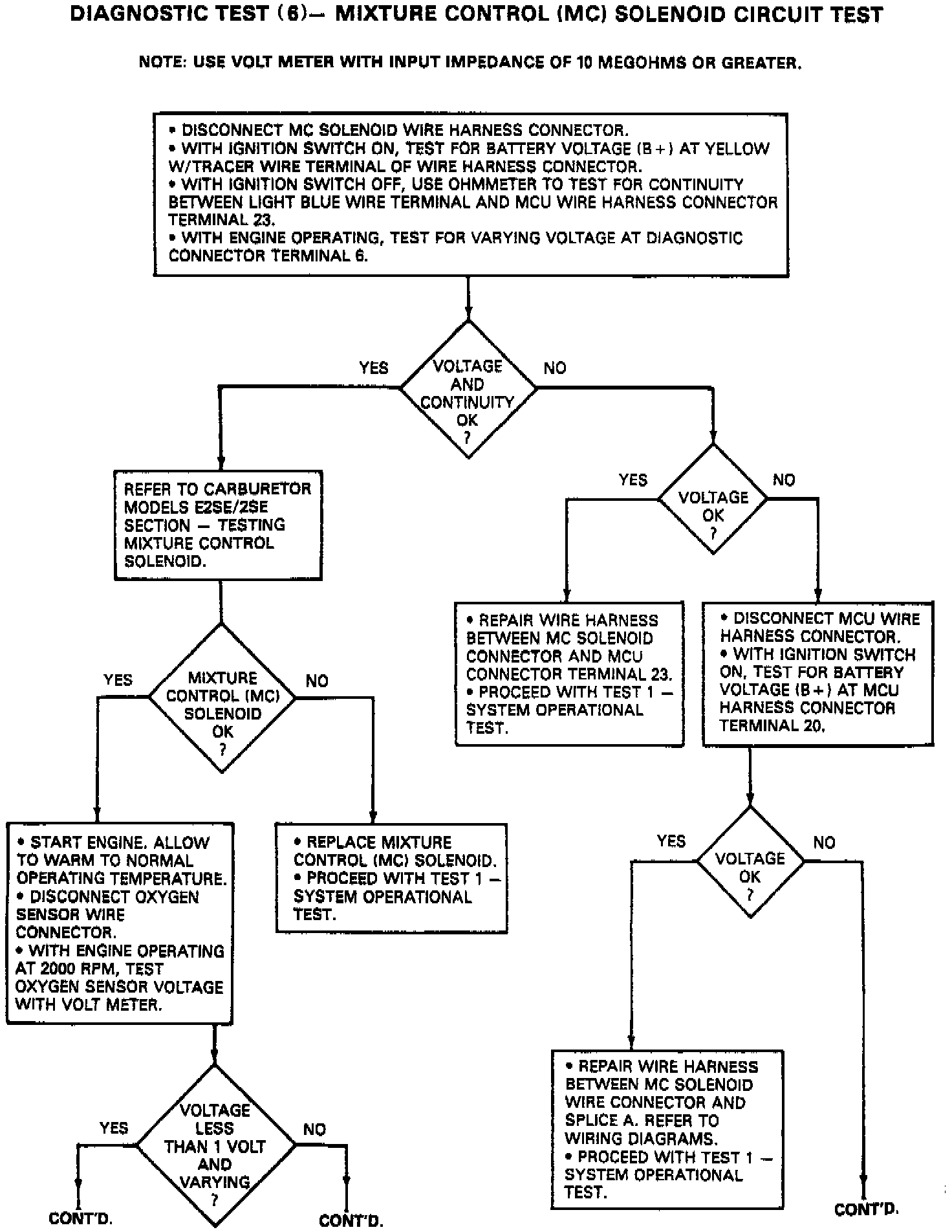

Diagnostic Test 6 1/2 Mixture Control Solenoid Circuit:

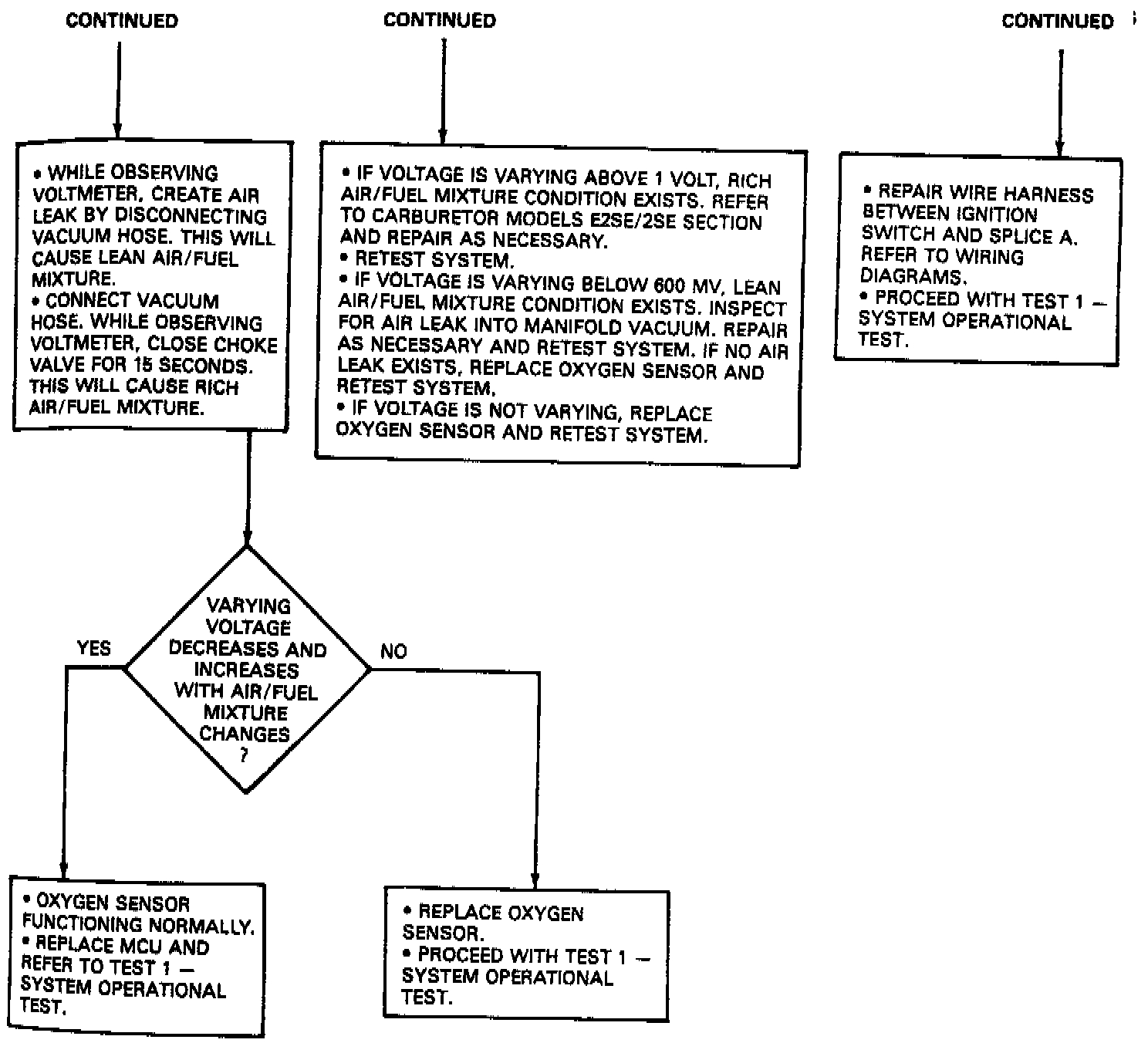

Diagnostic Test 6 2/2 Mixture Control Solenoid Circuit:
