Test 4 - Thermal Electric Switch (TES) Circuit Test
Test 4 - Thermal Electric Switch (TES) Circuit Test

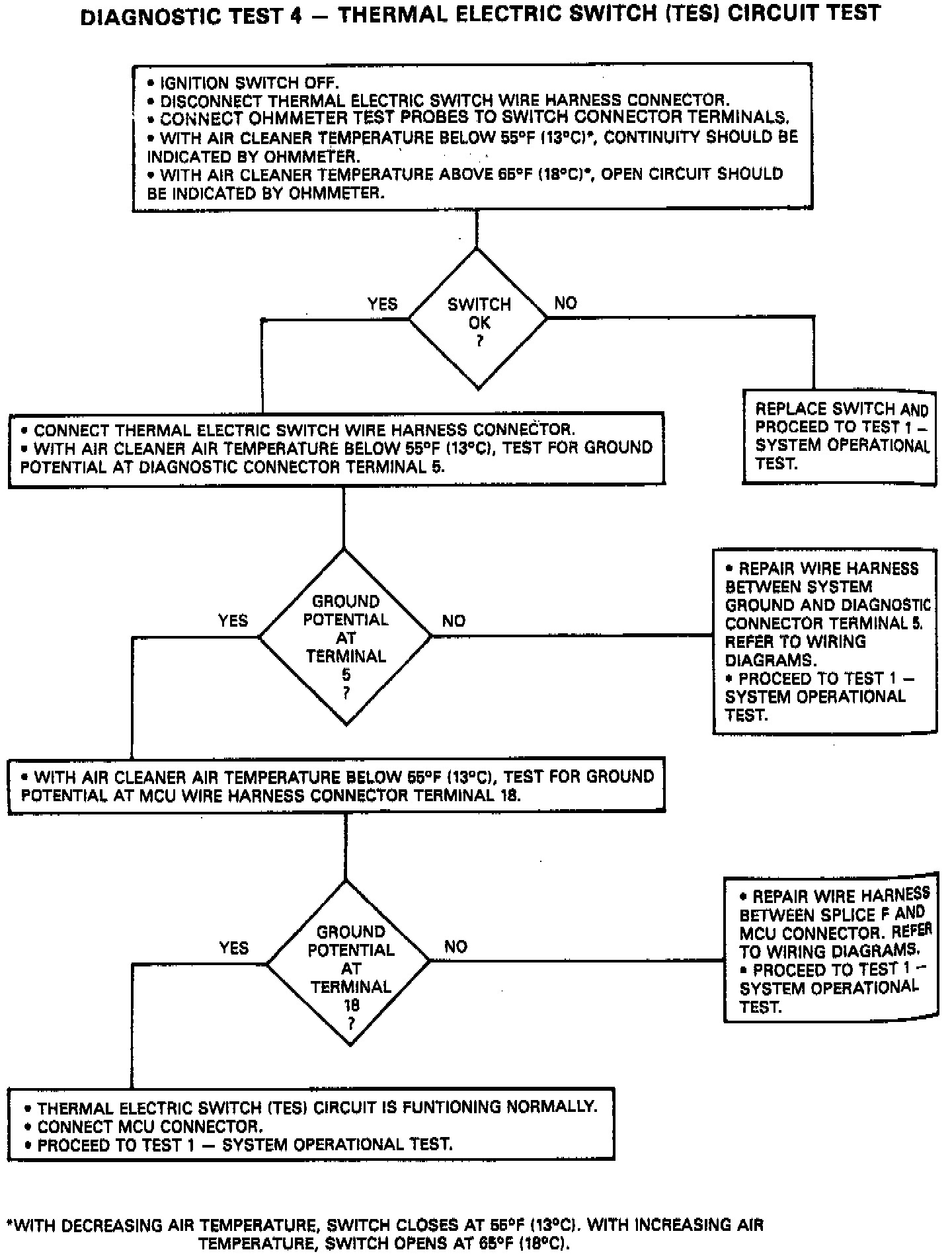

Diagnostic Test 4 Thermal Electric Switch (TES) Circuit:
