Test 3 - Vacuum Switch Circuit Test

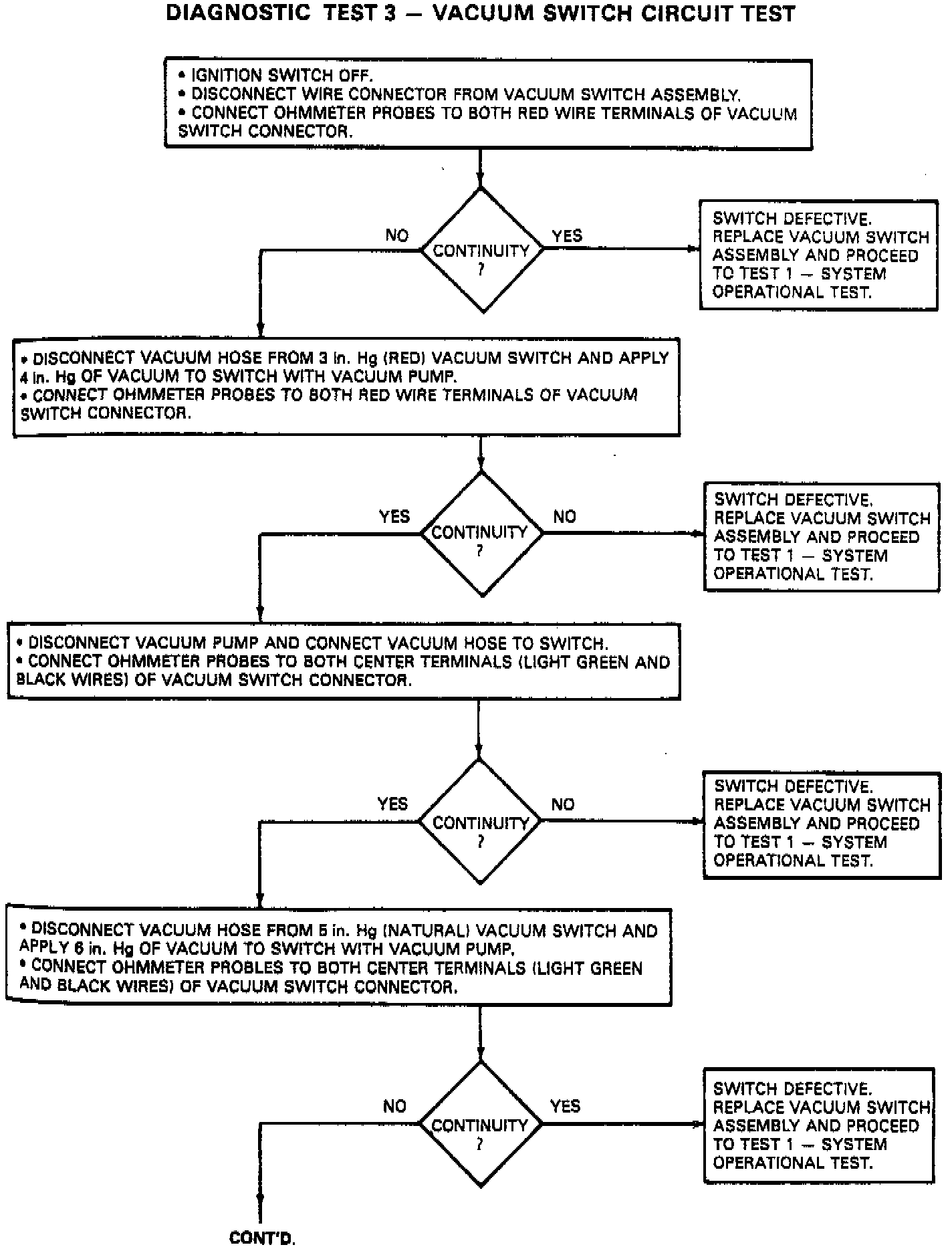

Diagnostic Test 3 1/3 Vacuum Switch Circuit:

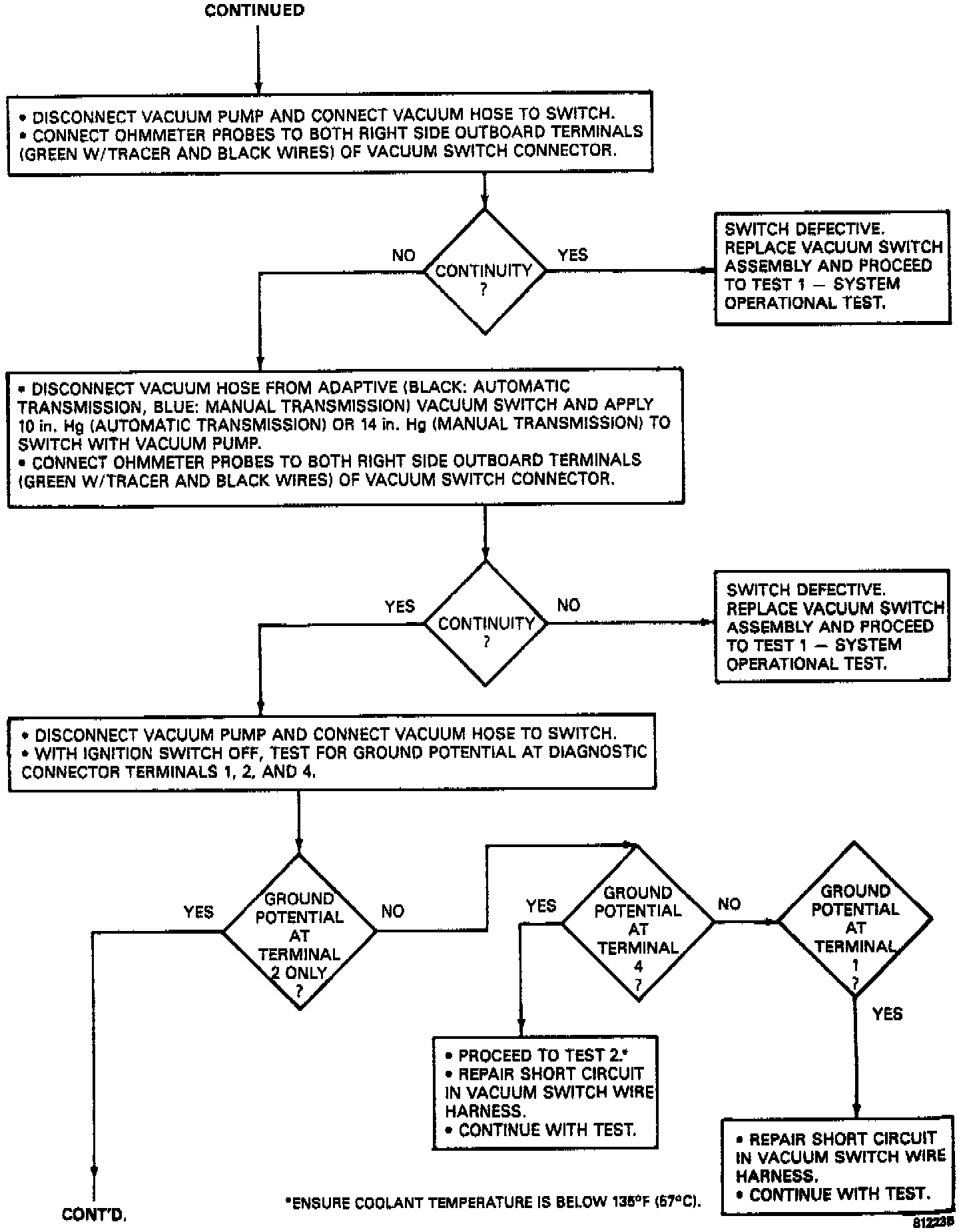

Diagnostic Test 3 2/3 Vacuum Switch Circuit:

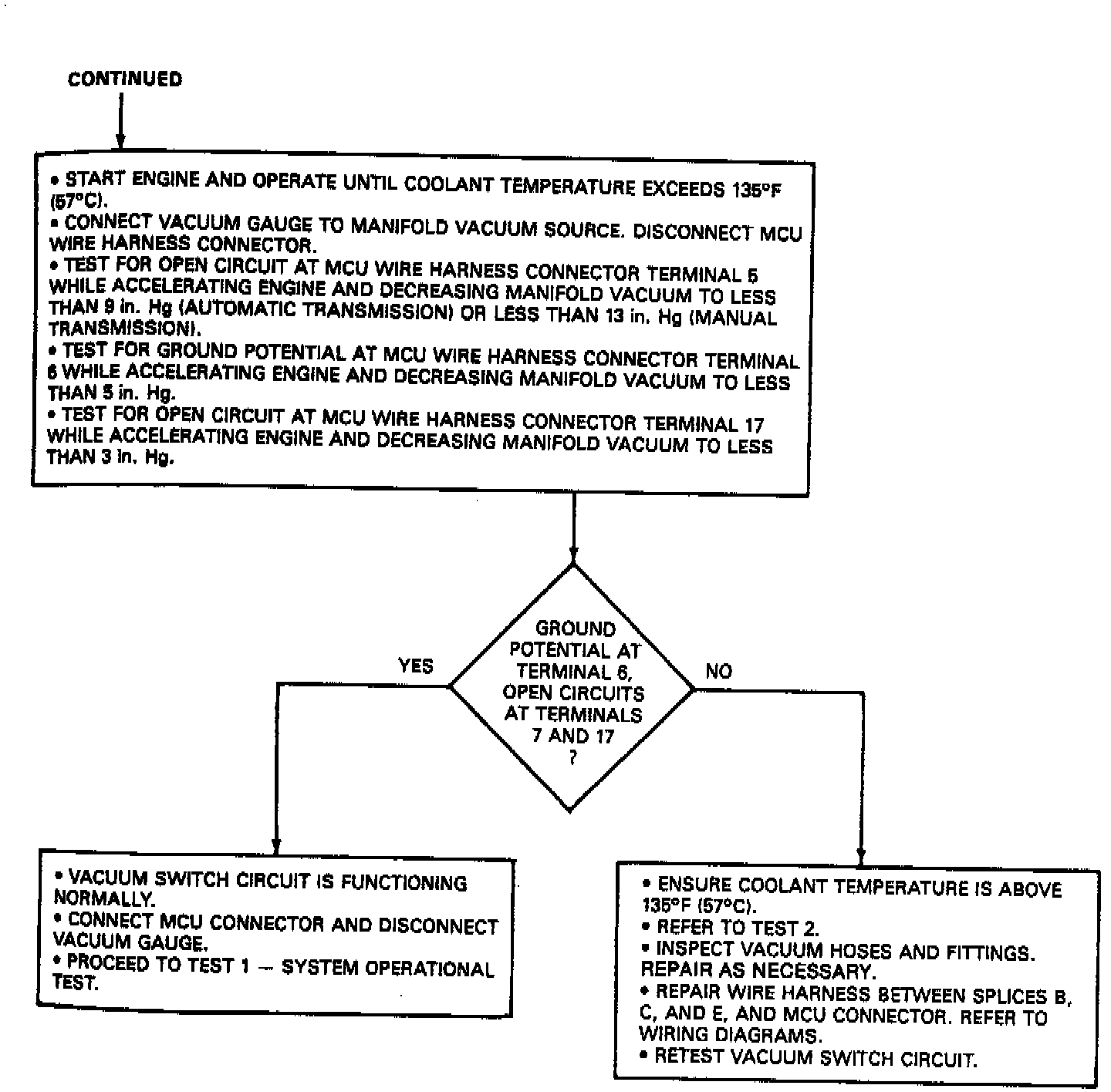

Diagnostic Test 3 3/3 Vacuum Switch Circuit:
