Test 2 - Coolant Temperature Switch Test
Test 2 - Coolant Temperature Switch Test

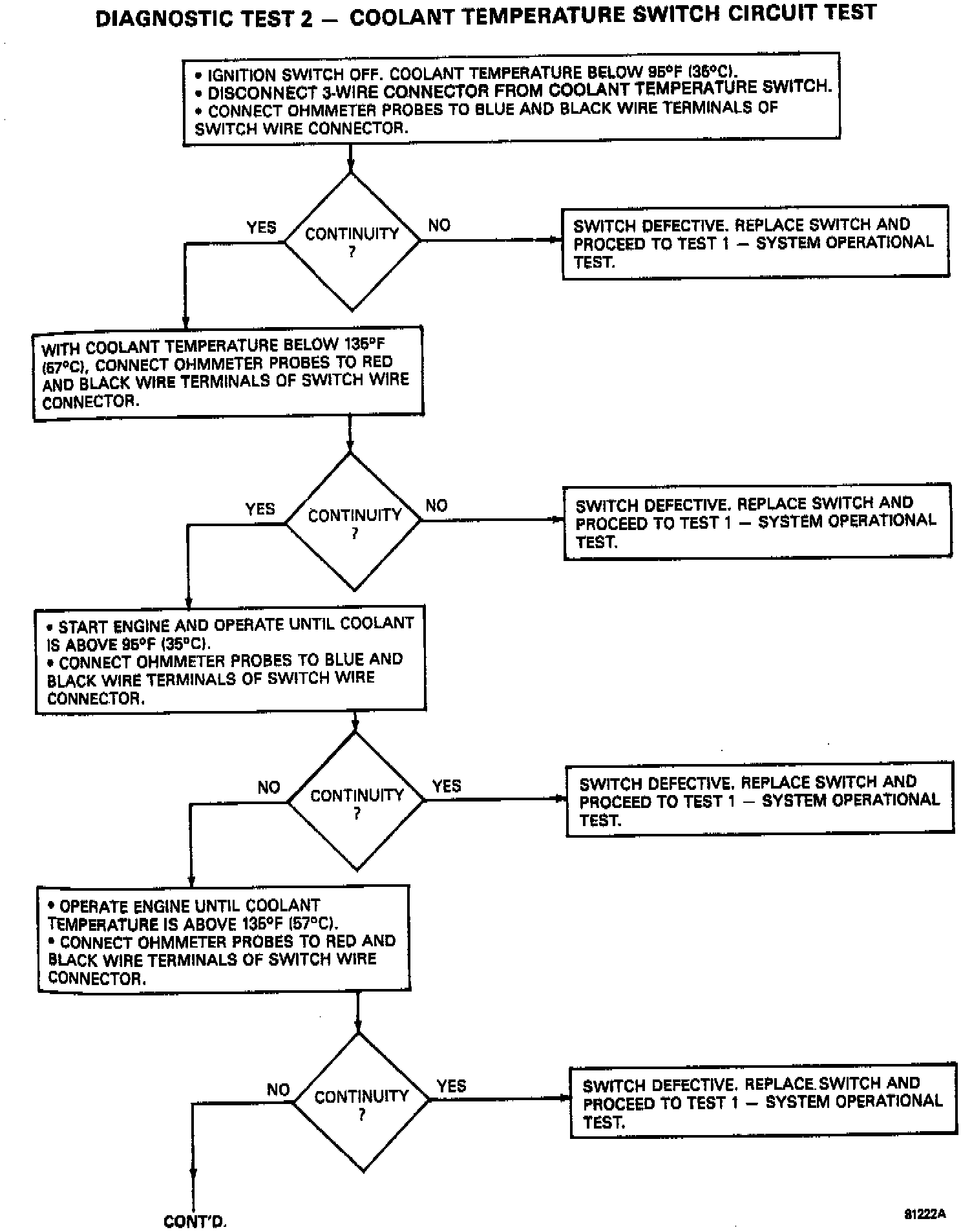

Diagnostic Test 2 1/2 Coolant Temp. Switch Circuit:

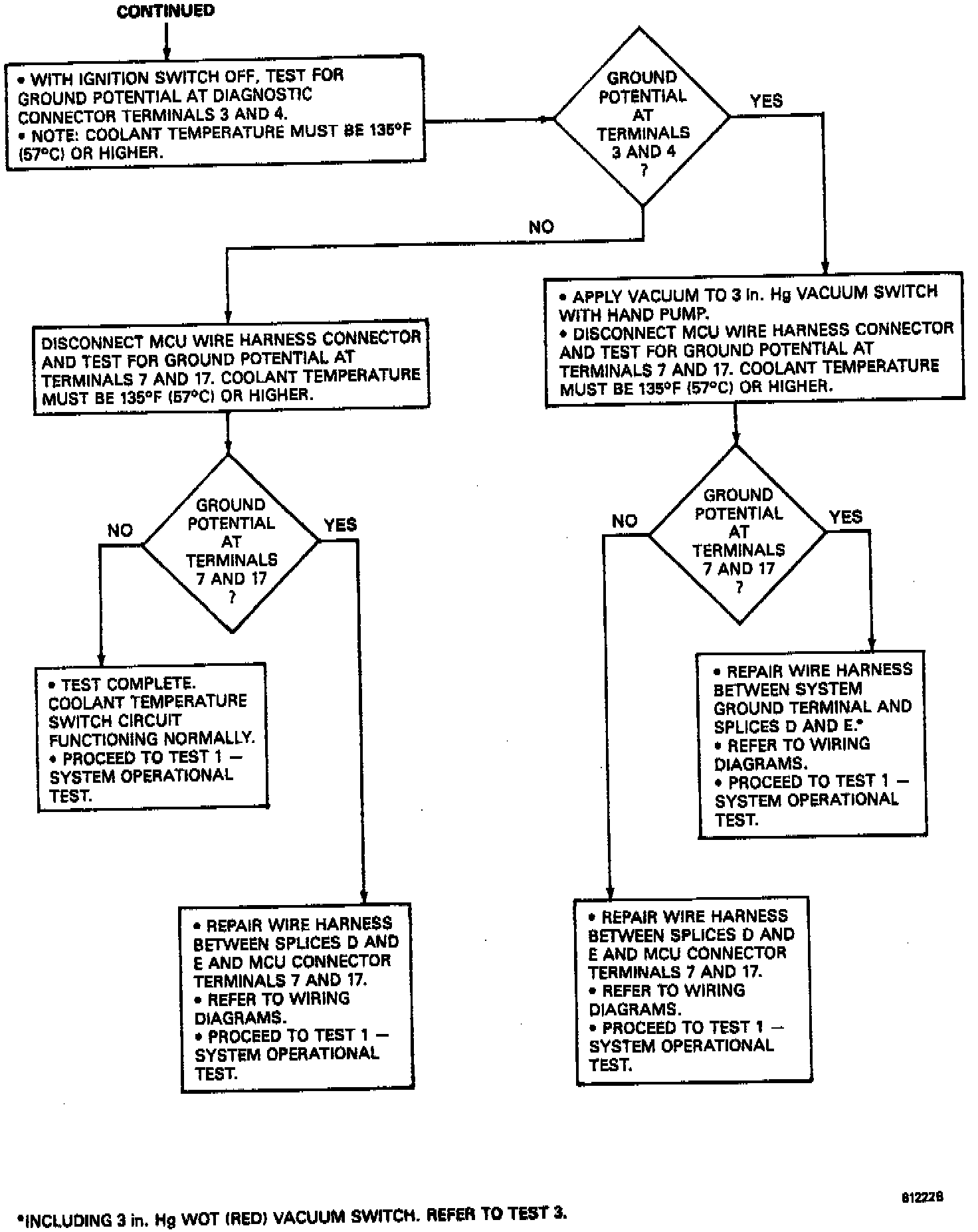

Diagnostic Test 2 2/2 Coolant Temp. Switch Circuit:
