Battery Tray: Notes
WARNING: This page is about a different car, the 2024 RAM ProMaster EV. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Remove the battery. Refer to BATTERY [ELA], REMOVAL AND INSTALLATION .
- Remove the bolts.

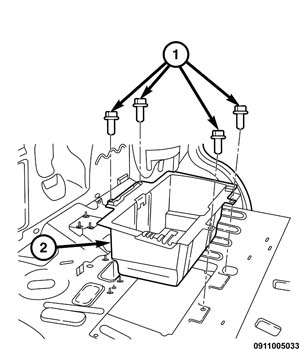

1 - Bolts 2 - Battery Tray - Lift the battery tray out of the floor and remove from the vehicle.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Position the battery tray into the floor of the vehicle and tighten the fasteners to the proper torque specifications.
- Connect the battery negative cable.
