Battery Disconnect And Connect

WARNING: This page is about a different car, the 2024 RAM ProMaster EV. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT

Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.

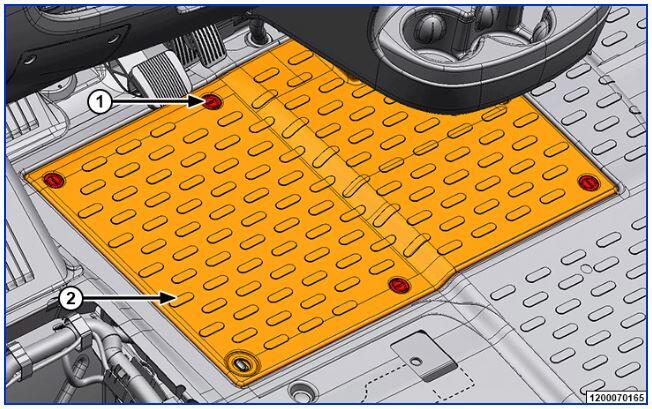

Remove the battery access cover.

Courtesy of CHRYSLER GROUP, LLC

1 - Battery Access Cover Clip

2 - Battery Access Cover

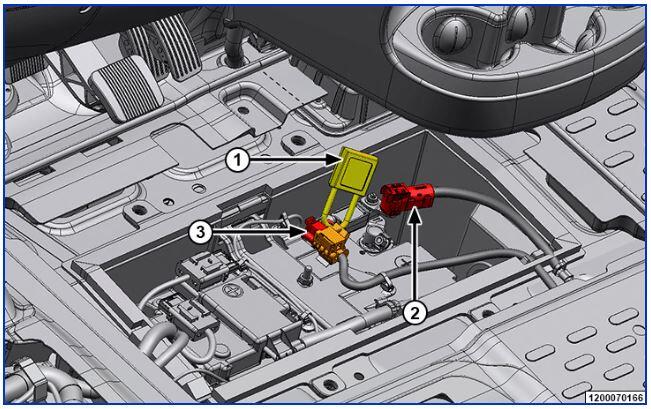

Release the negative battery clamp from the battery post.

Courtesy of CHRYSLER GROUP, LLC

1 - Lock

2 - Battery Negative Cable

3 - HVIL

CONNECT

Connect the negative battery clamp to the negative battery cable.
