Negative Battery Cable: Notes

WARNING: This page is about a different car, the 2024 RAM ProMaster EV. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.
Remove the battery access cover.

Release the negative battery clamp from the battery post.

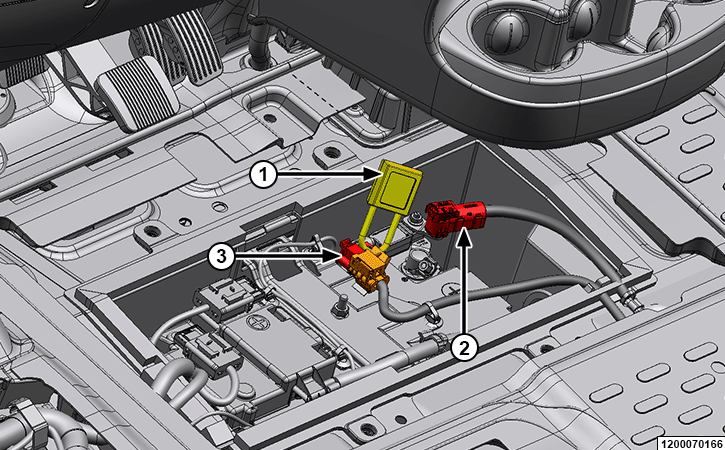

Courtesy of CHRYSLER GROUP, LLC

1- Pad Lock

2 - Negative Battery Clamp

3 - HVDL Disconnect

Remove the bolt that secures the cable to the body.
Remove the battery cable from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Position the battery cable in the vehicle.
Install the bolt that secures the cable to the body.
Connect the negative battery cable on the battery terminal.
