Electric Park Brake (EPB) Switch

REMOVAL

1. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
2. Remove the Electric Park Brake (EPB) switch bezel screw.

   Courtesy of CHRYSLER GROUP, LLC

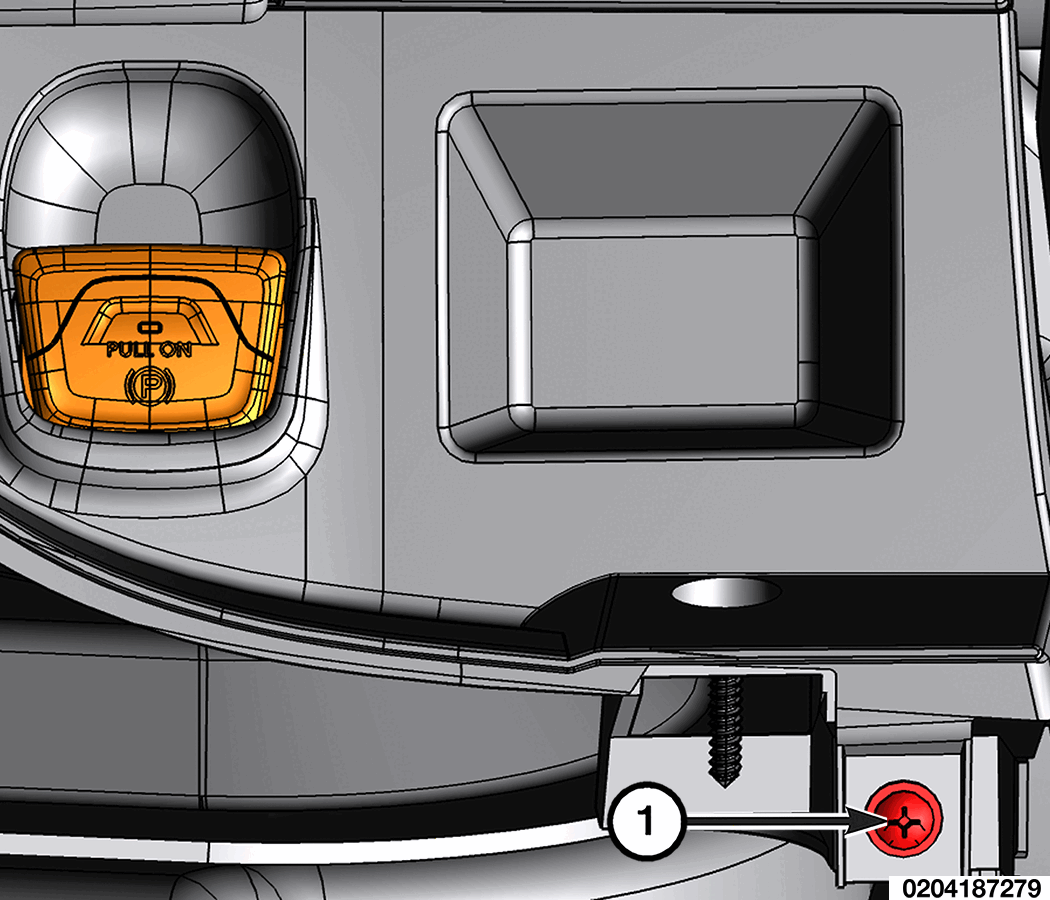

   1 - Electric Park Brake (EPB) Switch Bezel Screw

3. Tilt the EPB switch bezel upward and disengage the bezel from the instrument panel.
4. Pull out the EPB switch slightly and disconnect the EPB switch wire harness connector.

   Courtesy of CHRYSLER GROUP, LLC

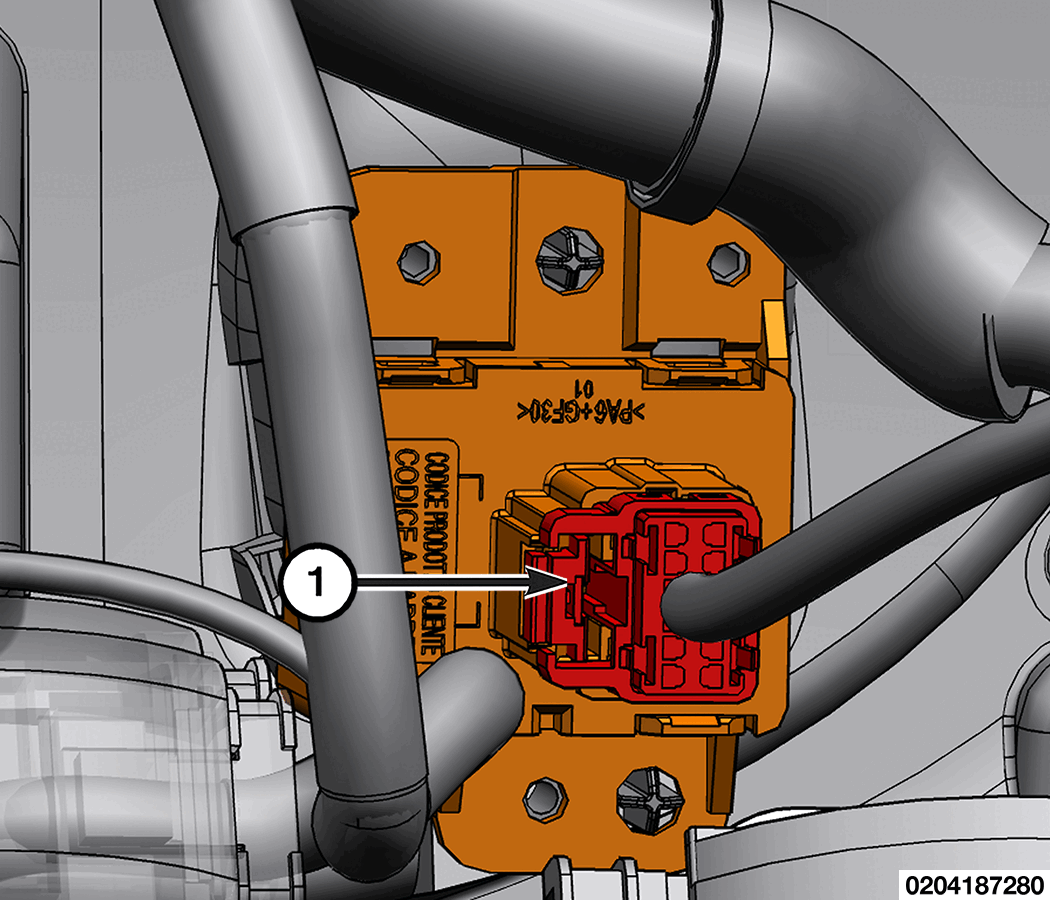

   1 - EPB Switch Wire Harness Connector

5. Remove the three EPB switch screws.

   Courtesy of CHRYSLER GROUP, LLC

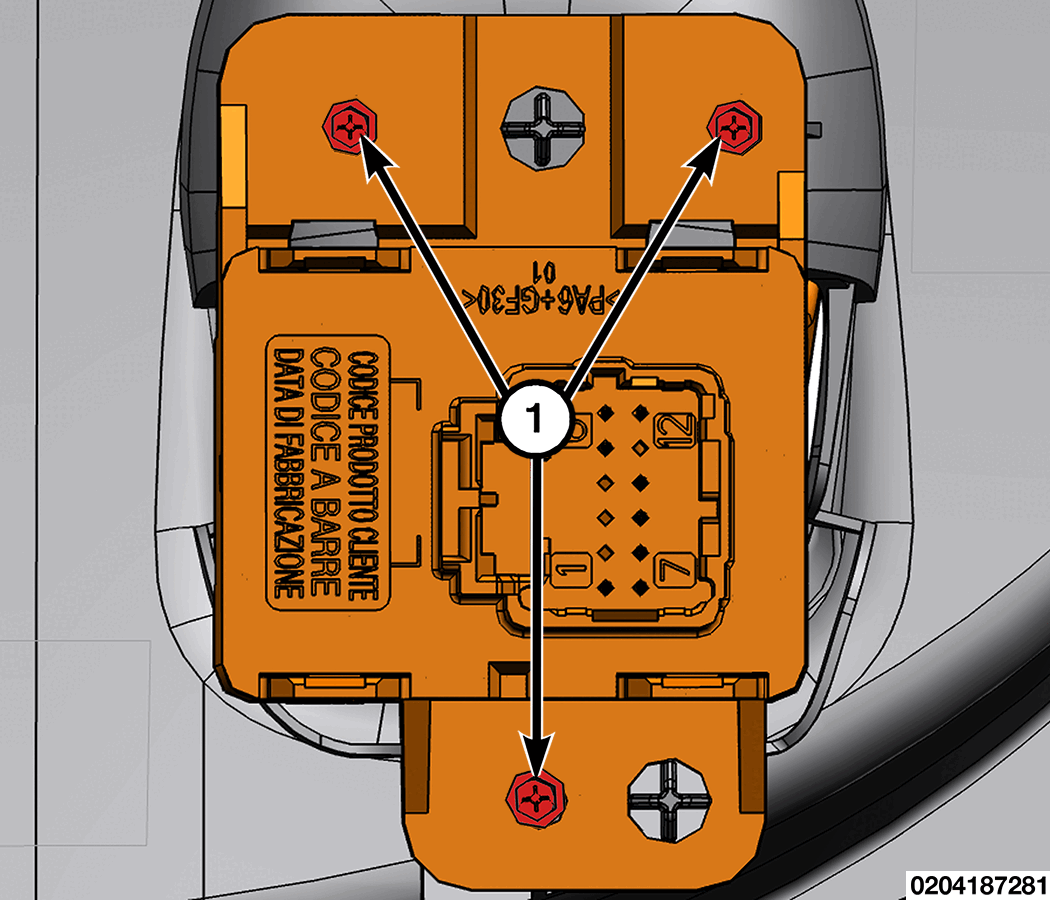

   1 - EPB Switch Screws

6. Remove the EPB switch.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
