Brake Fluid Level Switch

REMOVAL

1. Thoroughly clean all surfaces of brake fluid reservoir and master cylinder. Use only Mopar® Brake Parts Cleaner or equivalent.
2. Disconnect wiring harness connector from brake fluid level switch in master cylinder brake fluid reservoir.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Brake Fluid Level Switch Wire Harness Connector

3. Depress the tab on bottom of reservoir, then grasp the connector end of brake fluid level switch and pull it out of reservoir.

   Courtesy of CHRYSLER GROUP, LLC

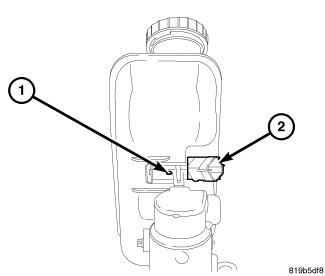

   1 - Tab

   2 - Brake Fluid Level Switch

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
