Headlamp Alignment
- Turn the headlamps ON and select the LOW beams.

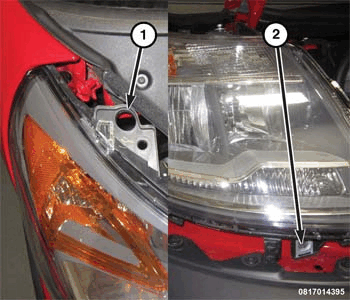

1 - Horizontal Adjustment Screw 2 - Vertical Adjustment Screw - Block the light of the left headlamp.
- Rotate the right headlamp vertical adjustment screw to adjust the right side of the beam pattern to the lamp horizontal reference height as required.
- Block the light of the right headlamp.
- Rotate the headlamp vertical adjustment screw to adjust the right side of the beam pattern to the lamp horizontal reference height as required.
- Use a screwdriver to rotate the headlamp horizontal adjustment screw on each headlamp to adjust as needed.
