Fog Lamp Alignment

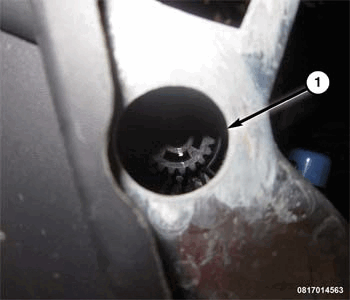

| 1 - Clearance Holes |
The fog lamp adjustment screw for this model is accessed through clearance holes on the left and right bottom side of the front fascia. A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.
- Position the vehicle complete with spare wheel, tools, fluids, fuel reserve.
- Check that the tire inflation pressure is correct.
- Position the vehicle on a flat surface, perpendicular to a screen or opaque surface 10 meters away on which a line corresponding to the height from the ground of the center of the fog lights has been traced.
- Switch on the fog lights and, via the opening, regulate the adjustment screw to aim.
