Oil Supply Tube Installation
| 1 - Oil Supply Tube O-Ring |
NOTE:
The oil supply tube O-rings may come out with the tube or stay in the bore when the tube is removed.
- Install NEW
oil supply tube O-rings on the oil supply tube.

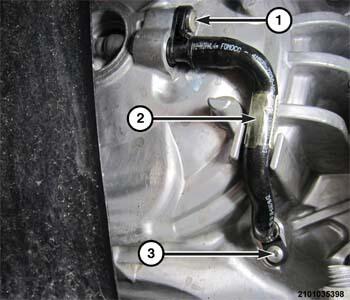

1 - Oil Supply Tube Bolt 2 - Oil Supply Tube 3 - Oil Supply Tube Bolt - Install the oil supply tube and tighten the oil supply tube bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Fill the transmission to the proper level with the correct fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
