Axle Seal Removal

Remove the halfshaft from the vehicle. Refer to REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

1 - Punch

2 - Axle Seal

NOTE:
Keep the punch tool in the center of the seal to avoid damage to the transmission housing.
Using a punch tool and hammer, punch a hole in the metal armature inside the seal.

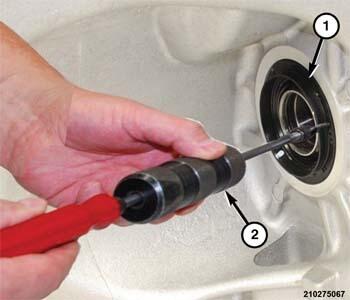

Courtesy of CHRYSLER GROUP, LLC

1 - Axle Seal

2 - Slide Hammer
Thread the sheet metal screw into the seal.
Tap outward on the slide hammer until the seal comes out of the seal bore.
