Oil Pump Removal

Remove the transmission from the vehicle. Refer to REMOVAL .
Position the transmission on the clean, stable work surface.
Remove the bellhousing from the transmission. Refer to BELLHOUSING, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

1 - Fluid Tube

2 - O-Rings
Remove the fluid tube from the intermediate support plate and bellhousing.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Oil Filter

2 - Filter to Intermediate Support Plate Bolt

Remove the bolt holding the transmission oil filter to the intermediate support plate.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Oil Filter

2 - Intermediate Support Plate

3 - Filter Neck

Separate the transmission oil filter from the intermediate support plate.

Courtesy of CHRYSLER GROUP, LLC

1 - Reaction Shaft

2 - Reaction Shaft Bolts

3 - Intermediate Support Plate Bolts

4 - Intermediate Support Plate

Remove the reaction shaft bolts holding the reaction shaft to the intermediate support plate.

Courtesy of CHRYSLER GROUP, LLC

1 - Intermediate Support Plate

2 - Reaction Shaft

3 - Oil Pump

Separate the reaction shaft from the intermediate support plate.

Courtesy of CHRYSLER GROUP, LLC

1 - Reaction Shaft

2 - Reaction Shaft Bolts

3 - Intermediate Support Plate Bolts

4 - Intermediate Support Plate

Remove the bolts holding the intermediate support plate to the bellhousing.

Courtesy of CHRYSLER GROUP, LLC

1 - Intermediate Support Plate

2 - Oil Pump Sprocket

3 - Bellhousing

Separate the intermediate support plate from the bellhousing.

Turn the intermediate support plate over on a work surface.

Courtesy of CHRYSLER GROUP, LLC

1 - Oil Pump Sprocket

2 - Drive Chain

3 - Intermediate Support Plate

Separate the oil pump drive sprocket from the drive chain.

Courtesy of CHRYSLER GROUP, LLC

1 - Intermediate Support Plate

2 - Oil Pump Driven Sprocket

3 - Oil Pump Drive Chain

Separate the oil pump drive chain from the oil pump driven sprocket.

Courtesy of CHRYSLER GROUP, LLC

1 - Pliers

2 - Oil Pump Driven Sprocket

3 - Intermediate Support Plate

Using pliers, compress the snap-ring holding the oil pump into the intermediate support plate.

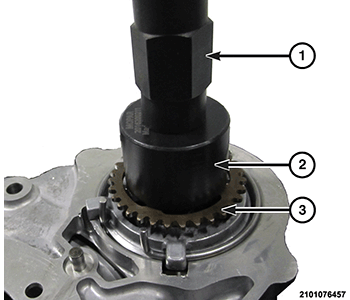

Courtesy of CHRYSLER GROUP, LLC

1 - Universal Slide Hammer C-637

2 - 948 TE Transmission Pump Remover/Installer 2016200211

3 - Oil Pump

While holding compression on the snap-ring, use to remove the oil pump out of the bore in the intermediate support plate.
(Special tool #2016200211, Remover-Installer, 948 TE Transmission Pump) and (Special tool #C-637, Slide Hammer, Universal)
