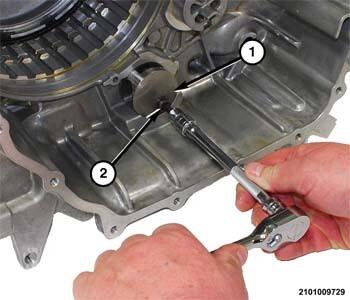

Park Rod Guide And Pawl Installation

Courtesy of CHRYSLER GROUP, LLC

1 - Park Rod Guide

2 - Park Rod Guide Bolt

NOTE:

If the park pawl is damaged the transfer gear may also be damaged. Replace the transfer gear if damage if present. If the transfer gear is replaced the proper thickness bearing preload select shim will have to be established.

Install the park rod guide and the park rod guide bolt in the transmission housing and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

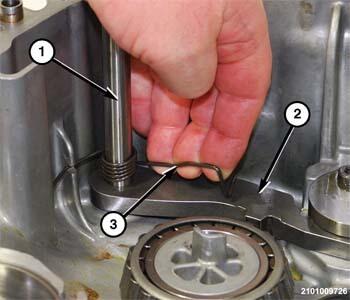

1 - Reaction Pin

2 - Park Pawl

3 - Return Spring

Install the park pawl in position in park rod guide.
Insert the reaction pin through the park pawl and into the transmission housing.
Slide the park pawl return spring over the reaction pin and insert the tail of the spring into the notch in the transmission housing.
Wind the park pawl return spring counterclockwise and hook the bent end of the spring over the park pawl.
Install the bellhousing into the transmission housing. Refer to BELLHOUSING, INSTALLATION .
Install the transmission into the vehicle. Refer to INSTALLATION .
