Differential Bearing Removal

Remove the transmission from the vehicle. Refer to REMOVAL .
Position the transmission on a suitable, clean work surface.
Remove the bellhousing. Refer to BELLHOUSING, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

1 - Differential Unit
Remove the differential unit from the transmission.

Clean the differential unit with solvent and blow it dry with regulated 344 kPa (50 psi) shop air.

Courtesy of CHRYSLER GROUP, LLC

1 - Press Puller C-293-PA

2 - Adaptor Blocks 9738

3 - Crankshaft 8531B

4 - Differential Unit

NOTE:

If the differential is assembled, remove the bearings using the following tools and procedure.

Using the tools mentioned below, remove the side bearings.
(Special tool #9738, Blocks, Adapter), (Special tool #8513B, Insert, Crankshaft), and (Special tool #C-293-PA, Puller, Press)

Courtesy of CHRYSLER GROUP, LLC

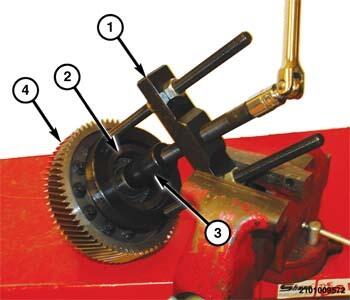

1 - Press Puller C-293-PA

2 - Block Set Puller C-293-37

3 - Press Plug 9678

4 - Side Bearing

NOTE:

If the differential is disassembled remove the bearings using following tools and procedure.

Using the tools mentioned below remove the side bearing.
(Special tool #C-293-37, Block Set, Puller), (Special tool #9678, Press Plug), and (Special tool #C-293-PA, Puller, Press)
