Differential Bearing Race Removal

Remove the transmission from the vehicle. Refer to REMOVAL .
Position the transmission on a suitable, clean work surface.

Remove the bellhousing. Refer to BELLHOUSING, REMOVAL .

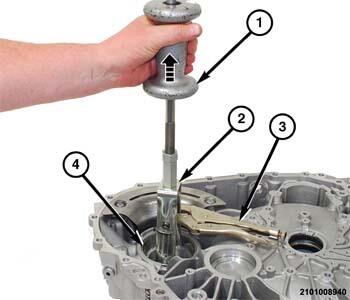

GC0159764

Courtesy of CHRYSLER GROUP, LLC

1 - Slide Hammer C-637

2 - Bearing Cup Remover 9664

3 - Vice Grip Pliers

4 - Bearing Race

Using the tools mentioned below, and suitable vise-grip pliers to hold the expansion screw in position, remove the bearing race from the bellhousing.
(Special tool #9664, Remover, Bearing Cup), (Special tool #C-637, Slide Hammer, Universal)

Courtesy of CHRYSLER GROUP, LLC

1 - Differential Unit

Remove the differential unit from the transmission.

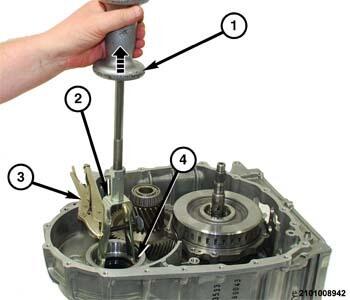

GC0159899

Courtesy of CHRYSLER GROUP, LLC

1 - Slide Hammer C-637

2 - Bearing Cup Remover 9664

3 - Vice Grip Pliers

4 - Bearing Race

Using the tools mentioned below and suitable vise-grip pliers to hold the expansion screw in position, remove the bearing race from the transmission housing.
(Special tool #9664, Remover, Bearing Cup), (Special tool #C-637, Slide Hammer, Universal)
