Differential Bearing Installation

If only the bearing is being replaced the bearing preload does not require a new select shim. If the transmission housing, bellhousing or differential is replaced, the proper thickness select shim will have to be determined. Refer to STANDARD PROCEDURES .

1. Clean the differential unit with solvent and blow it dry with regulated 344 kPa (50 psi) shop air.

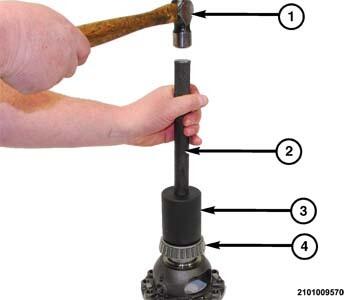

   Courtesy of CHRYSLER GROUP, LLC

   1 - Hammer

   2 - Universal Driver Handle C-4171

   3 - Seal Installer 6888

   4 - Bearing

2. Using a suitable hammer, and the tools mentioned below, install the side bearings.

   (Special tool #6888, Installer, Seal) and (Special tool #C-4171, Driver Handle, Universal)

3. If necessary, assemble the differential unit. Refer to DIFFERENTIAL AND RING GEAR, ASSEMBLY .

   Courtesy of CHRYSLER GROUP, LLC

   1 - Differential Unit

4. Install the differential assembly (1) into the transmission housing.
5. Install the bellhousing. Refer to BELLHOUSING, INSTALLATION .
6. Install the transmission in the vehicle. Refer to INSTALLATION .
