Internal Hydraulic Passages
Provided in the following illustrations are the locations of hydraulic passages that will aid in diagnosing leaks and clutch malfunctions.

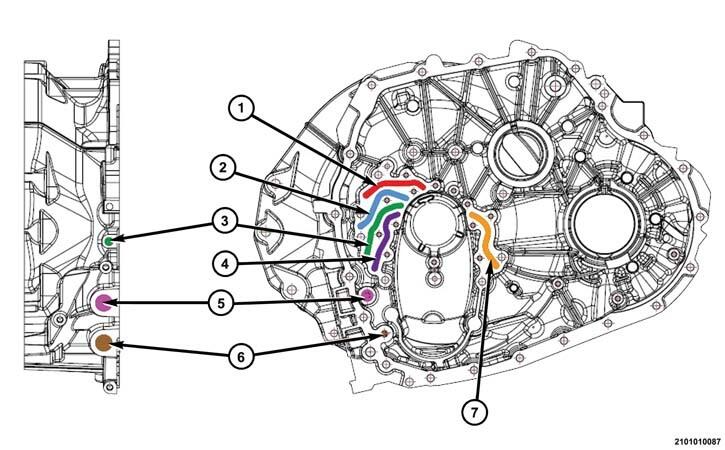

NO TITLE
| 1 - Dog Clutch A - OFF | 2 - Clutch E |
| 3 - Torque Converter Open | 4 - Dog Clutch F - OFF |
| 5 - From Cooler | 6 - To Cooler |
| 7 - Dog Clutch F - ON |

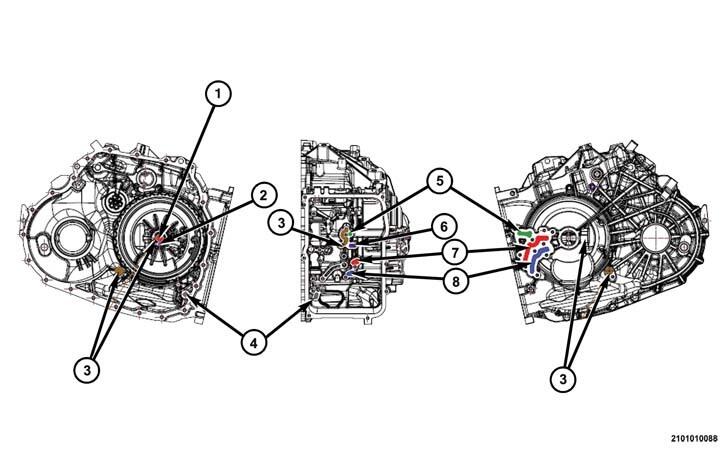

NO TITLE
| 1 - Dog Clutch A - ON | 2 - Clutch B |
| 3 - Lubrication | 4 - To Cooler |
| 5 - Clutch C | 6 - Clutch D |
| 7 - Dog Clutch A - ON | 8 - Clutch B |

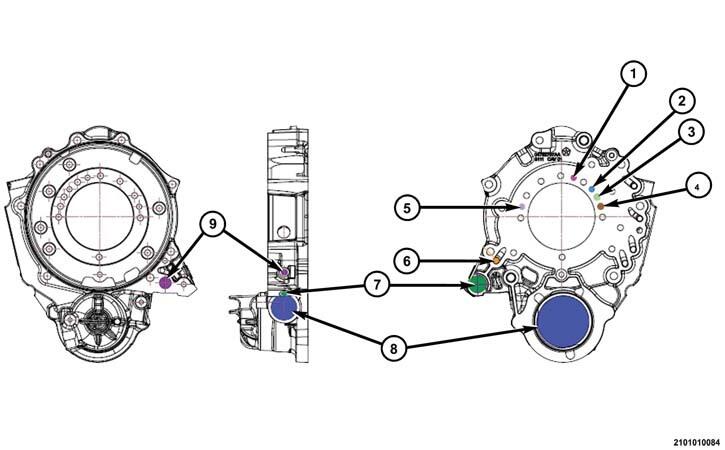

NO TITLE
| 1 - Dog Clutch A - OFF | 2 - Clutch E |
| 3 - Clutch J | 4 - Dog Clutch F - OFF |
| 5 - Dog Clutch F - ON | 6 - Front Lubrication |
| 7 - Rear Lubrication | 8 - Pump |
| 9 - From Cooler |
