948TE - Disassembly

The 948TE automatic transmission can be overhauled if the vehicle is beyond its warranty coverage. Verify that the vehicle is no longer covered by warranty, and that applicable parts for overhaul are available before beginning this procedure. A clean work area is necessary to assure a properly functioning transmission after the overhaul procedures are completed. Special tools have been developed and are required to disassemble this transmission. Acquire all of the special tools before starting this procedure.

WARNING:

Always wear safety glasses when cleaning, disassembling and assembling the transmission/transaxle. Contents of the transmission/transaxle can become projectiles (e.g., springs, snap-rings, as well as metal and other debris). Failure to wear safety glasses may result in severe personal injury.

CAUTION:

Tag all snap rings, thrust washers, washers, shims, spacers and thrust bearings, etc. during disassembly for quick identification and assembly. Failure to follow these instructions will cause damage and transmission failure.

Remove the torque converter.
Measure the input shaft end-play. Refer to INPUT SHAFT END PLAY MEASUREMENT .

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Solenoid Connector

2 - Clip
Remove the clip holding the transmission solenoid connector in the valve body cover pan.

Courtesy of CHRYSLER GROUP, LLC

1 - Valve Body Cover Pan Bolts
Remove the valve body cover pan bolts and the valve body cover pan.

Courtesy of CHRYSLER GROUP, LLC

1 - Valve Body Bolts
Remove the valve body bolts.
Using a suitable prying tool, pry the valve body away from the adapter tubes.

Courtesy of CHRYSLER GROUP, LLC

1 - Fluid Pressure Transducer

2 - Fluid Pressure Transducer Wire Connector
Turn the valve body over to gain access to wire harness connectors.
Release the lock on the fluid pressure transducer wire connector and separate the wire harness connector (2) from the fluid pressure transducer.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Solenoid Connector Bolts

2 - Transmission Solenoid Connector
Remove the bolts holding the transmission solenoid connector to the valve body and solenoids.
Using a suitable prying tool, separate the transmission solenoid connector from the solenoids.
Separate the valve body from the transmission.
NOTE:
If the valve body is to be reused without disassembling it, store the valve body in a clean area until it is installed.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Range Sensor (TRS) Screw
Remove the Transmission Range Sensor (TRS) screw.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Range Sensor (TRS)
Separate the TRS from the transmission with the wire harness connected.

Courtesy of CHRYSLER GROUP, LLC

1 - Speed Sensor Screw
Remove the speed sensor screw.

Courtesy of CHRYSLER GROUP, LLC

1 - Speed Sensor
Separate the speed sensor from the transmission with the wire harness connected.

Courtesy of CHRYSLER GROUP, LLC

1 - Fluid Transfer Tubes
Using suitable pliers, remove the fluid transfer tubes from the transmission.

Courtesy of CHRYSLER GROUP, LLC

1 - Bellhousing Bolts
From around the perimeter of the transmission, remove the bellhousing bolts holding the bellhousing to the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Bellhousing to Output Gear Support Bolts
Remove the bellhousing bolts holding the bellhousing to the output gear support.

Courtesy of CHRYSLER GROUP, LLC

1 - Bellhousing

2 - Transmission Housing
Using wooden blocks to stabilize the transmission on the work surface, position the transmission on the bench with the bellhousing facing upward.
Using a suitable pry-bar in the pry point locations, pry upward to dislodge the bellhousing from the transmission housing.
Lift the bellhousing upward and separate the assembly from the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Seal
Remove the seal from the port in the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Gasket

2 - Transmission Housing
Separate the gasket from the sealing surface of the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Differential Assembly
Remove the differential assembly from the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch E Drum

2 - Clutch E Hub
Separate the clutch E drum from the clutch E hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Bearing

2 - Clutch E Assembly
Separate the thrust bearing from the clutch E assembly.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch E Hub

2 - Output Gear Support
Separate the clutch E hub from the output gear support.

Courtesy of CHRYSLER GROUP, LLC

1 - Output Gear Support

2 - Pinion Gear Carrier 4
Separate the output gear support from pinion gear carrier 4.

Courtesy of CHRYSLER GROUP, LLC

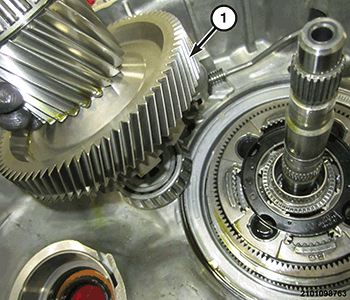

1 - Transfer Gear
Remove the transfer gear from the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Bearing

2 - Sun Gear 3 and 4 and Dog Clutch-F
Separate the thrust bearing from the sun gear 3 and 4 and Dog Clutch-F.

Courtesy of CHRYSLER GROUP, LLC

1 - Sun Gear 3 and 4 and Dog Clutch-F
Separate the sun gear 3 and 4 and Dog Clutch-F from pinion gear carrier 4.

Courtesy of CHRYSLER GROUP, LLC

1 - Pinion Gear Carrier 4
Separate the pinion gear carrier 4 from the annulus gear 4.

Courtesy of CHRYSLER GROUP, LLC

1 - Annulus Gear 4 and Pinion Gear Carrier 3

2 - Annulus Gear 3

Separate the annulus gear 4 and pinion gear carrier 3 from the annulus gear 3.

Courtesy of CHRYSLER GROUP, LLC

1 - Reaction Pin

2 - Park Pawl

3 - Park Pawl Return Spring

Compress and release the park pawl return spring.
Pull the reaction pin from the park pawl.
Separate the park pawl from the park rod guide.

Courtesy of CHRYSLER GROUP, LLC

1 - Park Rod Guide

2 - Park Rod Guide Bolt

NOTE:
The park rod guide can be removed without removing the park rod.

Remove the park rod guide bolt and the park rod guide.

Courtesy of CHRYSLER GROUP, LLC

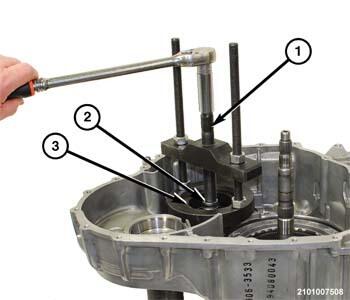

1 - Puller, Press C-293-PA

2 - Socket

3 - Blocks, Adapter 9738

Using the tools mentioned below and a suitable socket as a plug, remove the transfer gear bearing cone from the transmission housing.
(Special tool #C-293-PA, Puller, Press) and (Special tool #9738, Blocks, Adapter)

Courtesy of CHRYSLER GROUP, LLC

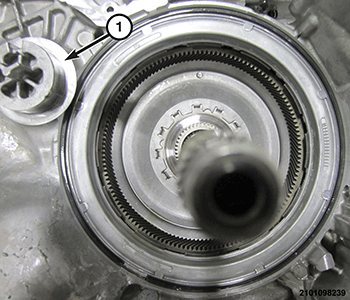

1 - Transfer Gear Bearing Preload Shim
Remove the transfer gear bearing preload shim.

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Bearing

2 - Annulus Gear 1 Hub
Separate the thrust bearing from the annulus gear 1 hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Annulus Gear 1 Hub

2 - Pinion Gear 1 and Carrier 2
Separate the annulus gear 1 hub from the pinion gear 1 and carrier 2.

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Bearing

2 - Annulus Gear 1 Hub
Separate the thrust bearing from under the annulus gear 1 hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap-Ring
Remove the snap-ring retaining annulus gear 3.

Courtesy of CHRYSLER GROUP, LLC

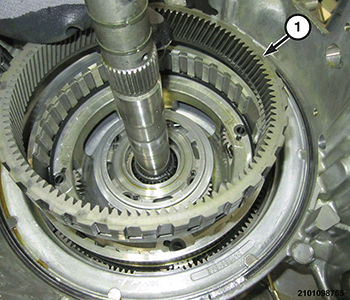

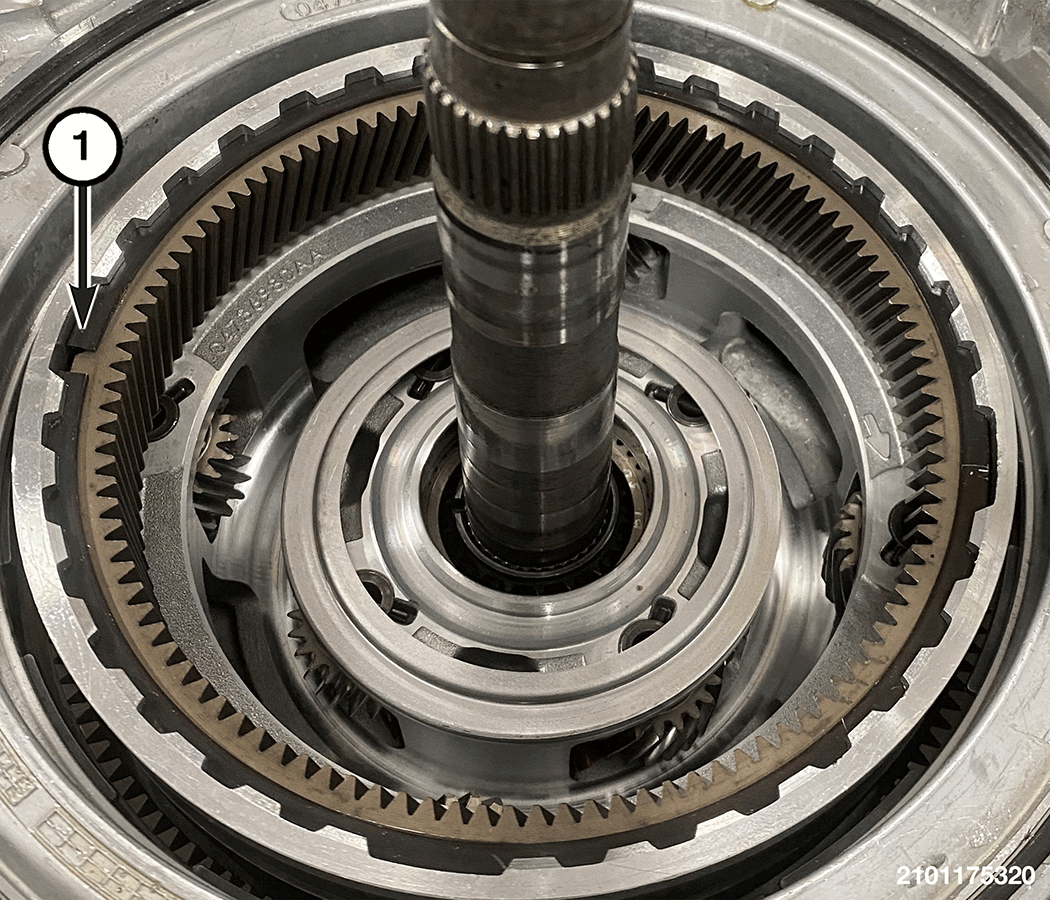

1 - Annulus Gear 3
Remove annulus gear 3 from the pinion gear 1 and 2 carrier.

Courtesy of CHRYSLER GROUP, LLC

1 - O-Ring Seal
Remove the O-ring seal from the pinion gear 1 and 2 carrier.

Separate the pinion gear 1 and 2 carrier from annulus gear 2 and the clutch D hub and input shaft assembly.

Courtesy of CHRYSLER GROUP, LLC

1 - Pressing Tool 8901A With Adapter, Pressing Tool 10428

2 - Clutch D Piston Retainer

Position the transmission housing on a suitable arbor press using wooden blocks for support.

Using the pressing tool (with pressure scale removed) and the adapter, compress the clutch D piston retainer against its belleville spring, then remove the clutch D piston retainer snap ring.

(Special tool #8901A, Pressing Tool) and (Special tool #10428, Adapter, Pressing Tool)

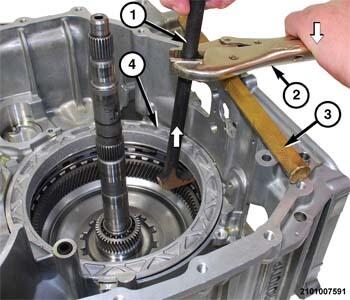

Courtesy of CHRYSLER GROUP, LLC

1 - Pry-Bar

2 - Locking Pliers

3 - Brass Drift

4 - Clutch D Piston Retainer

NOTE:

The O-ring seal on the clutch D piston retainer will hang up in the snap-ring groove during removal and will need to be pried out of the transmission housing.

Using a suitable pry-bar, locking pliers and a brass drift coupled together, pry the clutch D piston retainer upward and out of the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch D Piston Retainer

2 - Clutch D Piston
Remove the clutch D piston from the retainer.

Courtesy of CHRYSLER GROUP, LLC

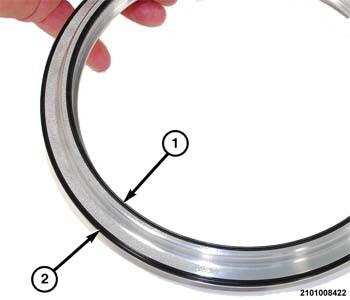

1 - Inner Lip Seal

2 - Outer Lip Seal

NOTE:
Note the orientation of the seal lips for reassembly.
Remove the inner and outer lip seals from the clutch D piston.

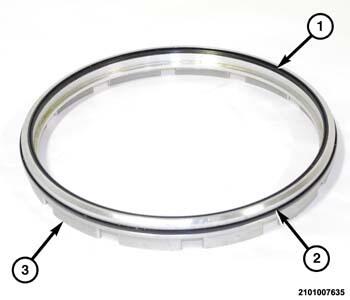

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch D Piston Retainer

2 - O-Ring Seal
Remove the O-ring seal from the clutch D piston retainer.

Courtesy of CHRYSLER GROUP, LLC

1 - Belleville Spring

2 - Input Shaft Assembly
Separate the belleville spring from the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Input Shaft Assembly
Separate the annulus gear 2, clutch D and clutch C hub and input shaft assembly with clutch B from the transmission housing.

Remove the annulus gear 2, clutch D and clutch C hub from the input shaft and clutch B.

Courtesy of CHRYSLER GROUP, LLC

1 - Seal-Rings

2 - Seal-Ring Lands

3 - Input Shaft

Remove the seal-rings from the lands on the input shaft.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch B Hub

2 - Snap-Ring

3 - Snap-Ring Pliers

NOTE:

Dog clutch A is permanently attached to the input shaft and cannot be disassembled.

Using suitable snap-ring pliers, remove the snap-ring holding the input shaft to the clutch B hub.

Separate the input shaft/dog clutch A from the clutch B (1) hub.

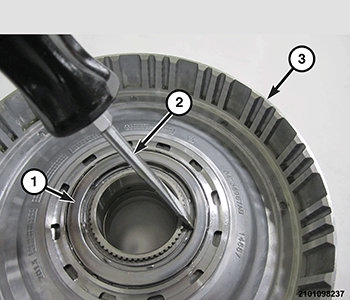

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Washer

2 - Screwdriver

3 - Clutch C Hub

Using a suitable tool, gently pry the thrust washer from the clutch C hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Annulus Gear 2, Clutch D and Clutch C Hub

2 - Plug, Differential End 9611
Place the annulus gear 2, clutch D and clutch C hub on tool to hold the sun gear in position.
(Special tool #9611, Plug, Differential End)

Courtesy of CHRYSLER GROUP, LLC

1 - Snap-Ring Pliers

2 - Snap-Ring

Using a suitable snap-ring pliers, remove the snap-ring holding the sun gear 1 to the annulus gear 2, clutch D and clutch C hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Sun Gear 1

2 - Annulus Gear 2

3 - Clutch C Hub

Turn the annulus gear 2, clutch D and clutch C hub over and remove sun gear 1.

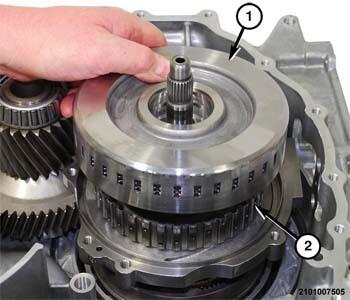

Courtesy of CHRYSLER GROUP, LLC

1 - Annulus Gear 2, Clutch D Hub

2 - Clutch C Hub
Separate the Annulus gear 2, clutch D hub from the clutch C hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Bearing

2 - Clutch C Hub
Separate the thrust bearing from the clutch C hub.

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Bearing
Remove the thrust bearing from the input shaft rear support.

Courtesy of CHRYSLER GROUP, LLC

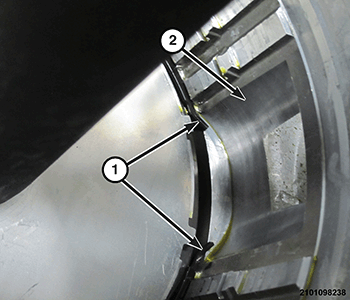

1 - Input Shaft Rear Support Selective Thrust Washer

2 - Thrust Surface
Remove the input shaft rear support selective thrust washer (1).

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch D Friction Discs and Steel Plates

Separate the clutch D friction discs and steel plates from the transmission housing.

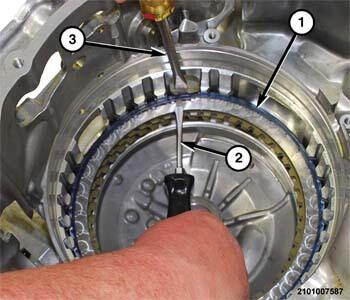

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch C Snap-Ring

2 - Screwdriver

3 - Screwdriver

Using two suitable screwdrivers, lift the clutch C snap-ring and pry it inward with the screwdriver and out of from the groove in the transmission housing.

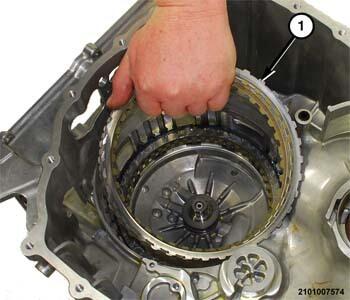

Courtesy of CHRYSLER GROUP, LLC

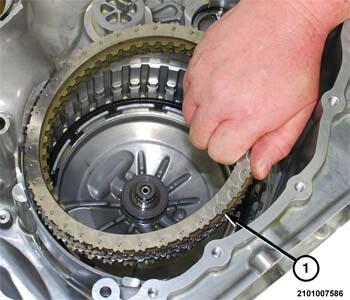

1 - Clutch C Friction Discs and Steel Plates

Separate the clutch C friction discs and steel plates from the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Compressor, Spring 10504

2 - Clutch C Belleville Spring

3 - Stepped Snap-Ring

Place tool over the clutch C belleville spring at the bottom of the transmission housing.

(Special tool #10504, Compressor, Spring)

Courtesy of CHRYSLER GROUP, LLC

1 - Stepped Snap-Ring

2 - Compressor, Spring 10504

3 - Installer, Bearing 8228

Place the tool over the input shaft support, compress the belleville spring to gain access to the stepped snap-ring.
(special tool #8228, Installer, Bearing) (tool 8901 with 10428 legs can also be used)

Courtesy of CHRYSLER GROUP, LLC

1 - Snap-Ring

2 - Transmission Housing
Using a suitable screwdriver, remove the snap-ring holding the clutch C belleville spring in the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch C Belleville Spring

2 - Clutch C Piston
Separate the clutch C belleville spring from the clutch C piston.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch C Piston

2 - Pliers

Using suitable pliers, remove the clutch C piston from the transmission housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Inner Seal

2 - Outer Seal

3 - Clutch C Piston

If overhaul is being performed, remove inner and outer seals from the clutch C piston.

Courtesy of CHRYSLER GROUP, LLC

1 - Inner Seal-Ring
Using a suitable hook tool, remove the inner seal-ring from the input shaft support.

Courtesy of CHRYSLER GROUP, LLC

1 - Outer Seal-Rings
Using a suitable hook tool, remove the outer seal-rings from the input shaft support.

Courtesy of CHRYSLER GROUP, LLC

1 - Split Roller Bearing
Using a suitable hook tool, remove the split roller bearing from the input shaft support.
