Bottle, Pressurized Coolant: Removal

  1. Partially drain the cooling system. Refer to DRAINING  .

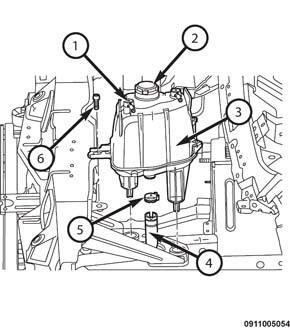

    GC0157472Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the coolant return hose (1).
  3. Disconnect the coolant hose from the top of the pressurized coolant bottle.
  4. Remove the pressurized coolant bottle bolt (6) and lift upwards on the pressurized coolant bottle (3).
  5. Loosen the clamp (5) and disconnect the lower coolant hose (4).
