TENSIONER, Belt: Installation
NOTE:
An indexing slot is located on back of tensioner. Align this slot to the head of the bolt on the front cover.

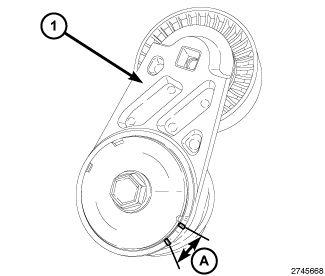

- Install the belt tensioner (1) and tighten the belt tensioner bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
