Pulley, Idler: Removal

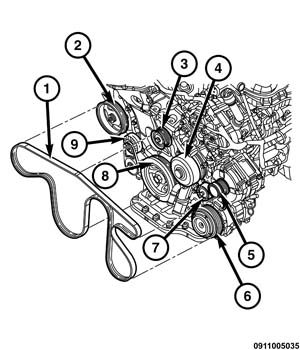

NOTE:

With A/C shown. Non A/C similar.

Courtesy of CHRYSLER GROUP, LLC

Partially remove the serpentine drive belt. Refer to BELT, SERPENTINE, REMOVAL .
Remove the upper idler pulley bolt and the upper idler pulley (3).

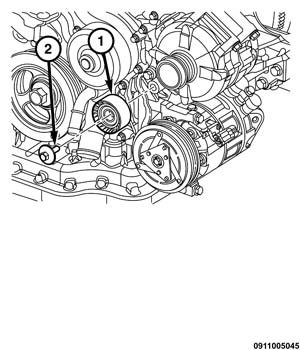

NOTE:
With A/C only.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower idler pulley bolt (2) and the lower idler pulley (1).
