Winch, Spare Tire Carrier: Installation

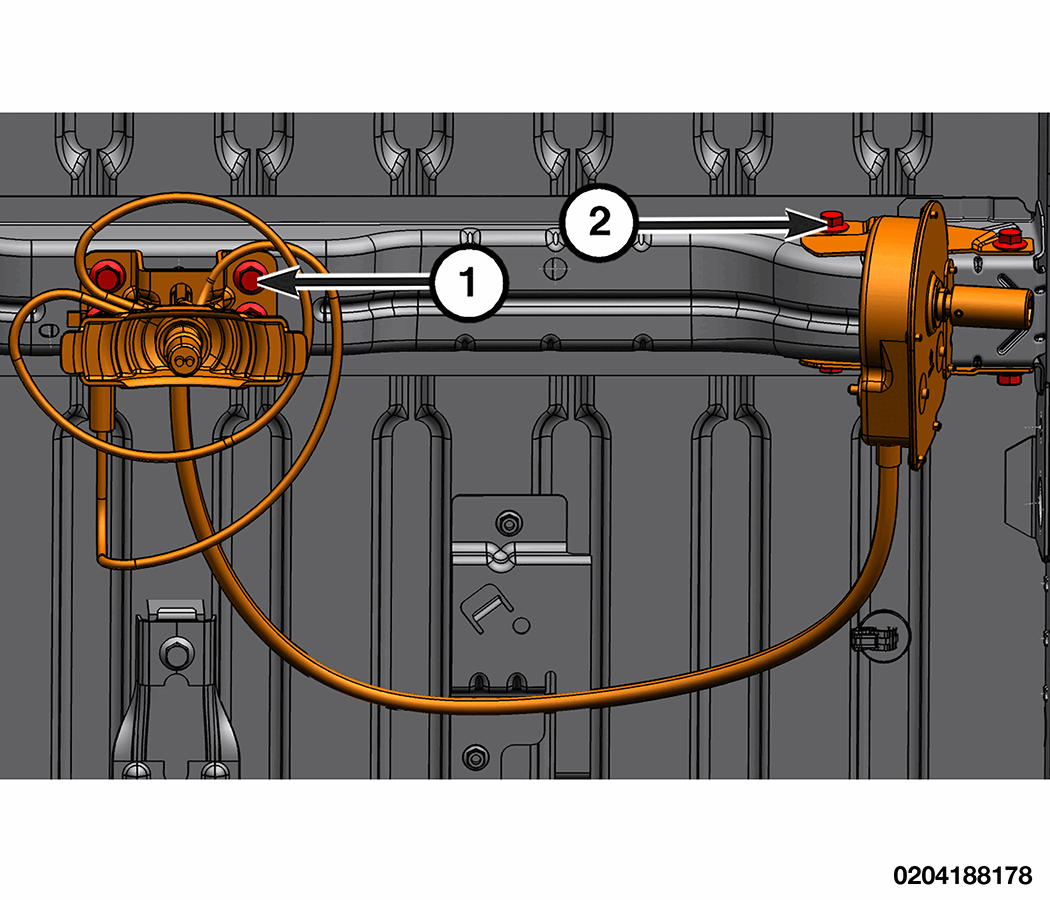

GC0204038Courtesy of CHRYSLER GROUP, LLC
  1. Position the winch to the body.
  2. Install the four spare tire winch bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
  3. Install the four spare tire winch bolts (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
  4. Lower the vehicle.
  5. Install the spare tire.
