Sensor, Tire Pressure Monitoring (TPM): Installation

Courtesy of CHRYSLER GROUP, LLC

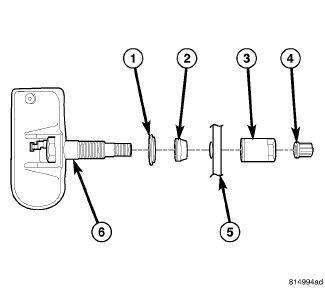

1 - METAL WASHER

2 - SEAL

3 - NUT (WITH PRESSED-IN WASHER)

4 - CAP (WITH SEAL)

5 - SECTIONAL CUTAWAY OF WHEEL

6 - TPM SENSOR

NOTE:

If installing the existing tire pressure sensor, install a new seal (2) and metal washer (1) at base of sensor valve stem (6).

Wipe area clean around sensor/valve stem mounting hole in wheel (5). Make sure surface of wheel is not damaged.

Courtesy of CHRYSLER GROUP, LLC

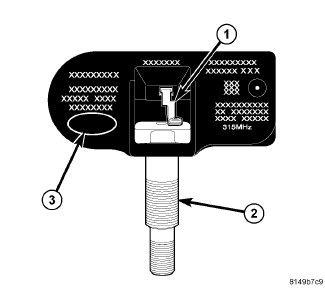

1 - ANTENNA STRAP

2 - VALVE STEM

3 - IDENTIFICATION INSIGNIA

CAUTION:

To avoid damaging sensor antenna strap (1), if equipped, hold pressure against rear of metal valve stem (2) while sensor is inserted through wheel mounting hole and nut is installed.

Courtesy of CHRYSLER GROUP, LLC

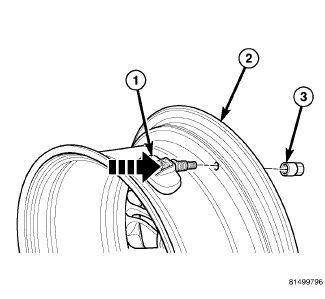

1 - TIRE PRESSURE SENSOR

2 - WHEEL

3 - NUT (WITH WASHER)

Insert sensor (1) through wheel (2) (as shown in the illustration) while keeping pressure against rear of metal valve stem. Potted side of sensor is to be positioned toward wheel. Do not attempt to mount sensor otherwise, damage may occur.
Install sensor nut (with pressed-in washer) (3) by hand.

Courtesy of CHRYSLER GROUP, LLC

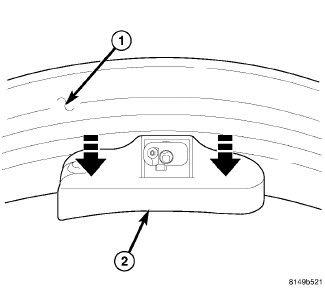

1 - WHEEL INTERIOR

2 - TIRE PRESSURE SENSOR

CAUTION:
Over-torquing the sensor nut by as little as 12 N.m (106 in. lbs.) may result in sensor separation from the valve stem. Under this condition, the sensor may still function. However, the condition should be corrected immediately.

NOTE:
Before tightening sensor nut, push downward on sensor housing (2) in an attempt to make it flush with interior contour of wheel (1).
While holding the sensor in position, tighten the sensor nut to the proper specification. Refer to Torque Specifications Wheels, Technical Specifications .

Courtesy of CHRYSLER GROUP, LLC

1 - HEAD OF CHANGER LOCATED HERE

2 - VALVE STEM

Mount tire on wheel following tire changer manufacturers instructions, paying special attention to the following to avoid damaging tire pressure sensor:

Rotating Wheel Tire Changers - Once the wheel is mounted to the changer, position the sensor valve stem (2) approximately 280° from the head of the changer (located at 1) in a clockwise direction before rotating the wheel (also in a clockwise direction) to mount the tire. Use this procedure on both the outer and inner tire beads.

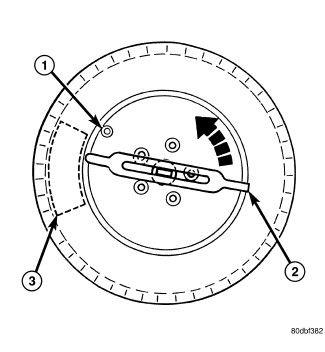

Rotating Tool Tire Changers - Position the wheel on the changer so that the sensor valve stem (1) is located approximately 210° clockwise from the installation end of the mounting/dismounting tool (2) once the tool is mounted for tire installation. Make sure the sensor is clear of the lower bead breaker area (3) to avoid damaging the sensor when the breaker rises. Rotate the tool (2) in a counterclockwise direction to mount the tire. Use this procedure on both the outer and inner tire beads.

Courtesy of CHRYSLER GROUP, LLC

1 - VALVE STEM

2 - INSTALLATION END OF MOUNTING/DISMOUNTING TOOL

3 - BEAD BREAKER (KEEP CLEAR OF SENSOR)

Adjust air pressure to that listed on Tire Inflation Pressure Label (Placard) provided with vehicle (usually applied to driver's side B-pillar). Make sure original style valve stem cap is securely installed to keep moisture out of sensor.
Install tire and wheel assembly on vehicle.
Remove the support and lower the vehicle.
NOTE:
If a sensor cannot be trained, refer to the appropriate Diagnostic Information.
Perform one of the following to make the system learn the new sensor ID:
1. Using a Scan Tool, program the tire pressure sensor ID. This is part of the TPM Diagnostic Verification Test.
2. Once the vehicle has remained stationary for more than 20 minutes, drive vehicle for a minimum of 10 minutes while maintaining a continuous speed above 15 mph (24 km/h). During this time, the system will learn the new sensor ID. This is part of the TPM Diagnostic Verification Test.
