Bushing(S), Lower Control Arm: Removal

  1. Remove the lower control arm. Refer to ARM, LOWER CONTROL, REMOVAL .
    NOTE:

    For reference only.

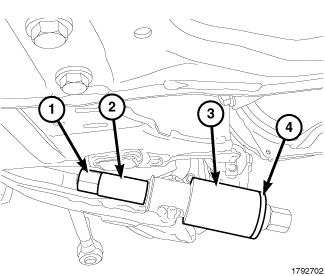

    GC0124378Courtesy of CHRYSLER GROUP, LLC
  2. Using an LCA bushing installer along with screw assembly, and a remover/installer, press the bushing out of the lower control arm.

    (special tool #10141, Remover/Installer, LCA Bushing), (special tool #8839, Screw Assembly) and (special tool #10141-4, Remover/Installer)
