Bushing(S), Lower Control Arm: Installation
NOTE:
When installing the bushing in the bushing sizer (3), use Mopar® rubber bushing installation lube Part No. 05010319AA or equivalent.
(special tool #10141-1, Sizer, Bushing)

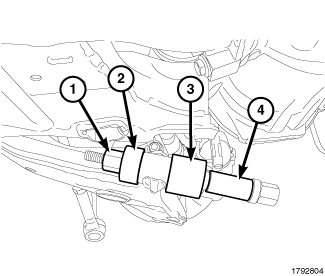

- Install the bushing in the lower control arm using a screw assembly and LCA bushing installer, and the proper adapters.
(special tool #8839, Screw Assembly), (special tool #10141, Remover/Installer, LCA Bushing), (special tool #10141-5, Remover/Installer) (2), (special tool #10141-1, Sizer, Bushing) (3), and (special tool #10141-3, Receiver, Installer) (4).
- Install the lower control arm. Refer to ARM, LOWER CONTROL, INSTALLATION .
