Ball Joint, Suspension, Lower: Installation

Courtesy of CHRYSLER GROUP, LLC

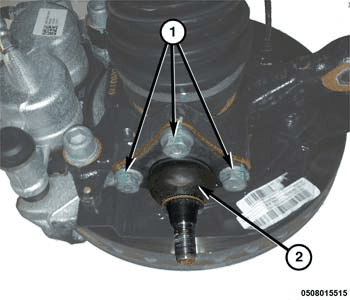

1. Install lower ball joint (2) and three fasteners (1) to the steering knuckle. Tighten fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

2. Install the lower control arm to the ball joint.
3. Install a NEW  nut (3) attaching lower control arm to ball joint by holding rod end stud stationary while tightening nut with a wrench. Using a crowfoot wrench on a torque wrench, tighten the nut to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

4. Install the outer tie rod end (1) to the knuckle.

   Courtesy of CHRYSLER GROUP, LLC

5. Install a NEW  nut (3) attaching outer tie rod to knuckle by holding rod end stud stationary while tightening nut with a wrench. Using a crowfoot wrench on a torque wrench, tighten the nut to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

6. Install nut (2) securing link to the lower control arm. Tighten the nut the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
7. Install the tire and wheel assembly. Refer to REMOVAL .
8. Lower the vehicle.
9. Perform wheel alignment. Refer to WHEEL ALIGNMENT  .
