Stabilizer Bar, Rear Suspension: Installation

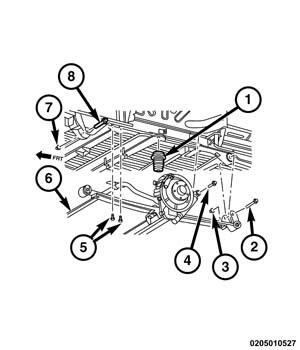

- Install the stabilizer bar into position from the left side of the vehicle, carefully guiding it over the exhaust pipe.
- Install the four retaining bolts (5) attaching the stabilizer bar to the body. Tighten the bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.
- Using NEW nuts (1), attach the stabilizer bar links (2) to the stabilizer bar. Tighten the nuts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the left rear tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
