Hub And Bearing: Removal

NOTE:

Before proceeding. Refer to WARNING .

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel. Refer to REMOVAL .
  3. Remove the rear brake rotor. Refer to ROTOR, BRAKE, REMOVAL .

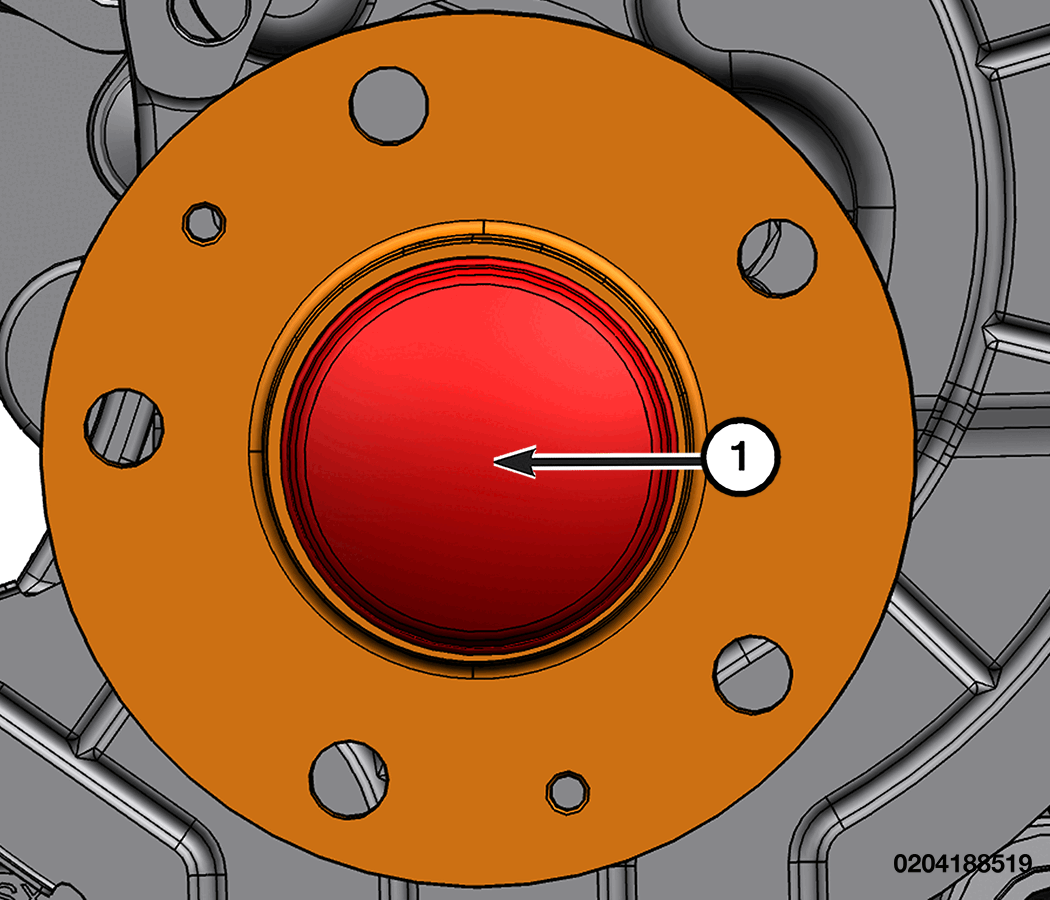

    GC0204081Courtesy of CHRYSLER GROUP, LLC
  4. Remove the hub and bearing dust cap (1).
  5. Remove the wheel speed sensor from the spindle.
    GC0203980Courtesy of CHRYSLER GROUP, LLC
  6. Using a suitable punch, lift the two staked areas in the hub nut (1) to avoid damaging the spindle.
  7. Remove and DISCARD  the hub nut (1).
    NOTE:

    The hub nut is not reusable.

  8. Remove the hub and bearing (2).
