Swivel Seat
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

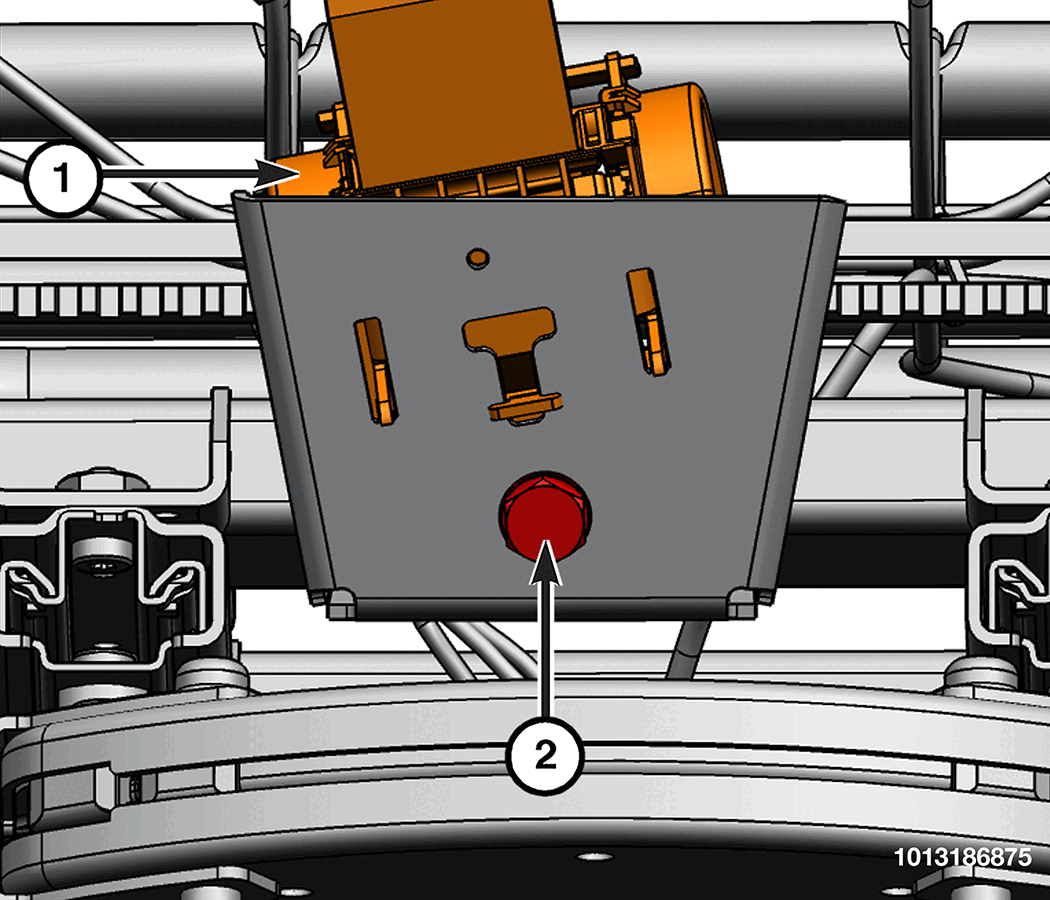

- Position the outboard seat belt and retractor (1) to the seat cushion frame.
- Install and tighten the screw (2) that secures the retractor to the seat cushion frame. Tighten the screw to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Engage the seat belt webbing through the seat belt guide.
- Install the seat back cover and cushion assembly. Refer to COVER, SEAT BACK, FRONT, INSTALLATION
.
- Position the seat belt lower anchor (2) to the seat cushion frame. Be certain the seat belt webbing between the turning loop and the lower anchor is not twisted.
- Install and tighten the screw (1) that secures the lower anchor to the seat cushion frame. Tighten the screw to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Install the outboard seat cushion side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, INSTALLATION .
- Restore the seat to the normal seating position.
