Drier, A/C Receiver: Installation
Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.
The A/C receiver/drier must be replaced if an internal failure of the A/C compressor has occurred. Failure to replace the A/C receiver/drier can cause serious A/C compressor damage.
When replacing multiple A/C system components, refer to the Refrigerant Oil Capacities chart to determine how much oil should be added to the refrigerant system. Refer to STANDARD PROCEDURE - REFRIGERANT OIL LEVEL .
Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets may result in a refrigerant system leak.

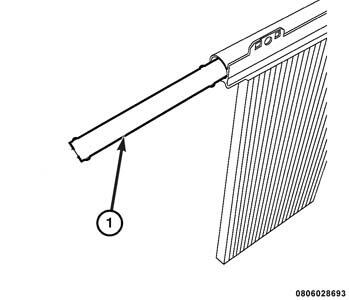

- Position the A/C receiver/drier (1) into the condenser.

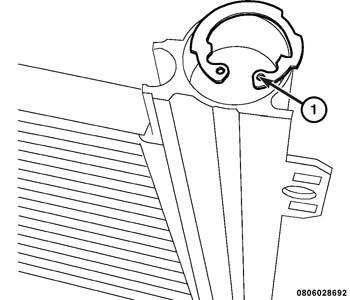

- Install the clip (1) that secures the A/C receiver/drier into the condenser.

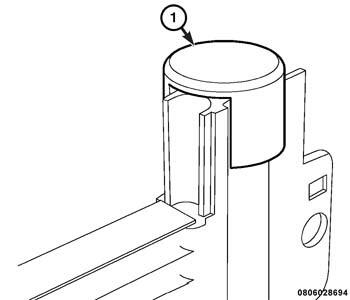

- Install the protective cover (1) onto the condenser.
- Install the condenser. Refer to CONDENSER, A/C, INSTALLATION .
- Connect the negative battery cable.
- Evacuate the refrigerant system. Refer to REFRIGERANT SYSTEM EVACUATE .
- Charge the refrigerant system. Refer to REFRIGERANT SYSTEM RECOVERY .
