Outlet, Air: Installation: Inboard

NOTE:

Right side shown. Left side similar.

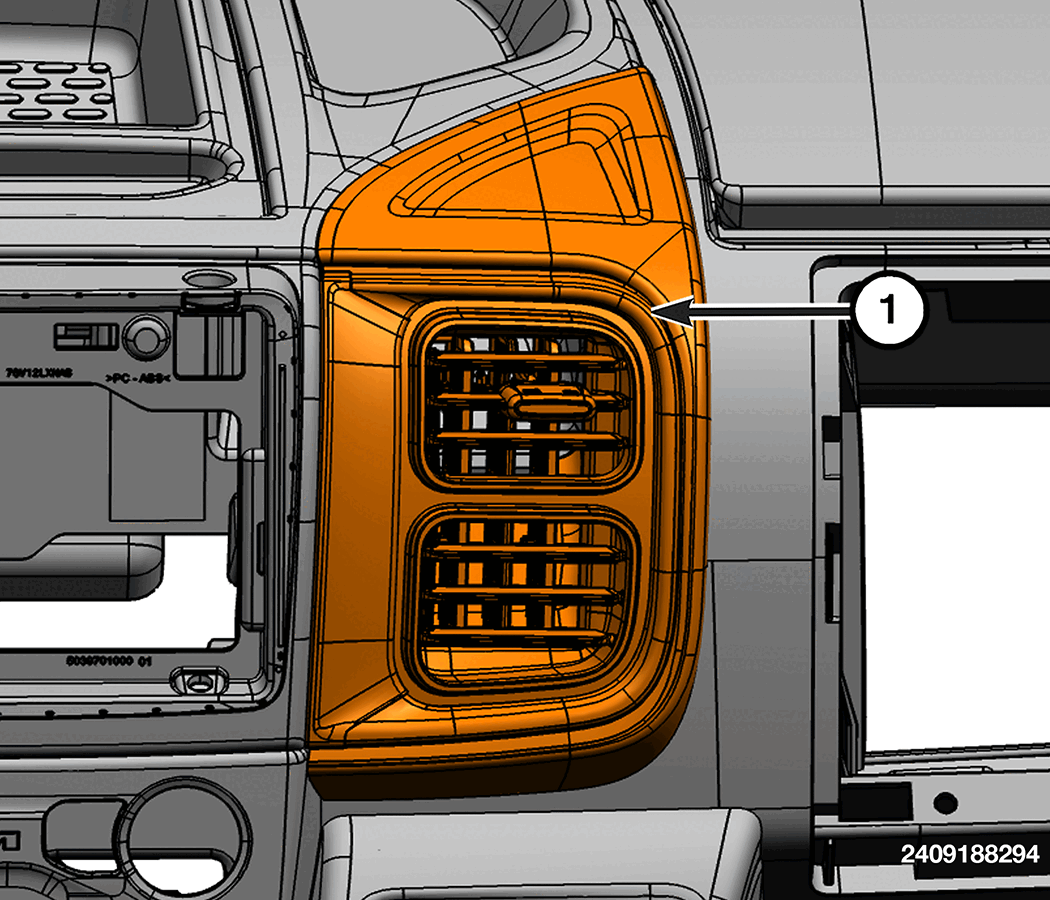

GC0204079Courtesy of CHRYSLER GROUP, LLC
  1. Position the instrument panel air outlet (1) to the instrument panel and engage the retaining clips to the instrument panel. Make sure the retainers are fully engaged.
  2. If equipped, install the display screen module. Refer to MODULE, DISPLAY SCREEN (DSM), INSTALLATION .
  3. Connect the negative battery cable.
