Motor, Blower: Installation

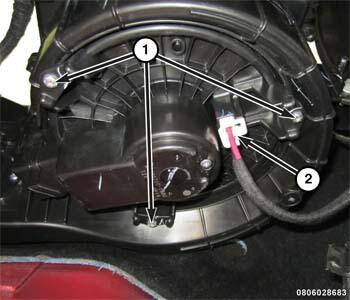

GC0160274Courtesy of CHRYSLER GROUP, LLC
  1. Position the blower motor into the HVAC housing and install the three retaining screws (1) and tighten the screws to the proper specification. Refer to TORQUE SPECIFICATIONS .
  2. Connect the wire harness connector (2) to the blower motor.
  3. Install the silencer underneath the passenger side of the instrument panel.
  4. Connect the negative battery cable.
