Motor, Blower: Description

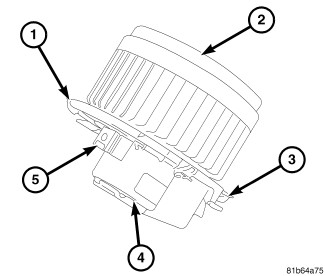

The blower motor is mounted to the bottom of the Heating, Ventilation and Air Conditioning (HVAC) housing, on the passenger side of the vehicle. The blower motor assembly is a squirrel type blower cage (2) connected to a 12-volt, direct current (DC) motor located within a plastic housing (4). The blower motor has an integral wire harness bracket (1), three mounting provisions (3) and a wire harness connector receptacle (5).
The blower motor can be accessed for service from underneath the instrument panel.
