Transducer, A/C Pressure: Removal

NOTE:

It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

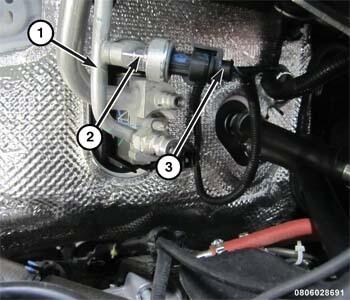

GC0160206Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the wire harness connector (3) from the A/C pressure transducer (2).
  3. Remove the A/C pressure transducer from the A/C line (1) and remove and discard the O-ring seal.
