Module, Power, Blower Motor: Installation

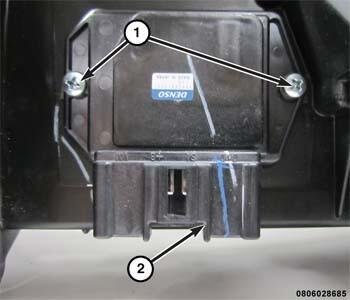

GC0160729Courtesy of CHRYSLER GROUP, LLC
  1. Position the blower motor power module to the HVAC housing.
  2. Install the screws (1) that secure the blower motor power module to the HVAC housing.
  3. Connect the wire harness connector (2) to the blower motor power module.
  4. Install the passenger side instrument panel silencer.
  5. Connect the negative battery cable.
