Actuator, RECIRCULATION Door: Removal

WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Disconnect and isolate the negative battery cable.
  2. Remove the Central Vision Processing Module (CVPM). Refer to MODULE, CENTRAL VISION PROCESSING (CVPM), REMOVAL .
    GC0160637Courtesy of CHRYSLER GROUP, LLC

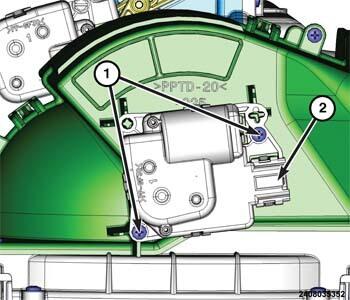

  3. Remove the two screws (1) that secure the recirculation door actuator to the HVAC air inlet housing and remove the actuator from the housing.
  4. Disconnect the wire harness connector (2) from the recirculation door actuator.
