Actuator, Mode Door: Removal

WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Disconnect and isolate the negative battery cable.
  2. Remove the Vehicle Systems Interface Module (VSIM). Refer to MODULE, VEHICLE SYSTEM INTERFACE (VSIM), REMOVAL .
    GC0160255Courtesy of CHRYSLER GROUP, LLC
  3. Disengage (1) and remove the right side floor duct (2) from the HVAC housing.
    GC0160459Courtesy of CHRYSLER GROUP, LLC

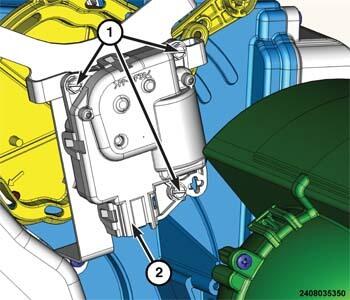

  4. Remove the three screws (1) that secure the mode door actuator to the actuator mounting bracket.
  5. Disconnect the wire harness connector (2) from the mode door actuator and remove the actuator.
