Actuator, Blend Door: Removal

WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Illustration shown with instrument panel cover removed for clarity.

  1. Disconnect and isolate the negative battery cable.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
    GC0160389Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect any wiring harness connectors that are in the way and set aside.
  4. Disengage the left side floor duct (1) from the HVAC housing (2).

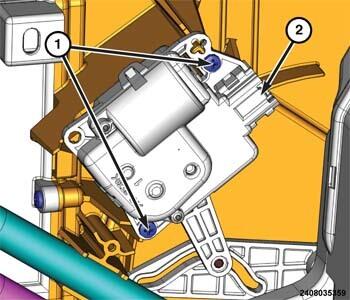

    GC0160171Courtesy of CHRYSLER GROUP, LLC
  5. Working from underneath reach upwards and disconnect the wire harness connector (2) from the blend door actuator.
  6. Remove the two screws (1) that secure the blend door actuator to the HVAC housing.
    CAUTION:

    Use care when removing the blend door actuator to prevent damage to the blend door linkage. If required, disconnect the blend door linkage from the blend doors and then separate the linkage from the blend door actuator.

  7. Disengage the blend door actuator from the blend door linkage and remove the actuator.
