Tube, Exhaust Gas RECIRCULATION (EGR), Crossover: Installation

Courtesy of CHRYSLER GROUP, LLC

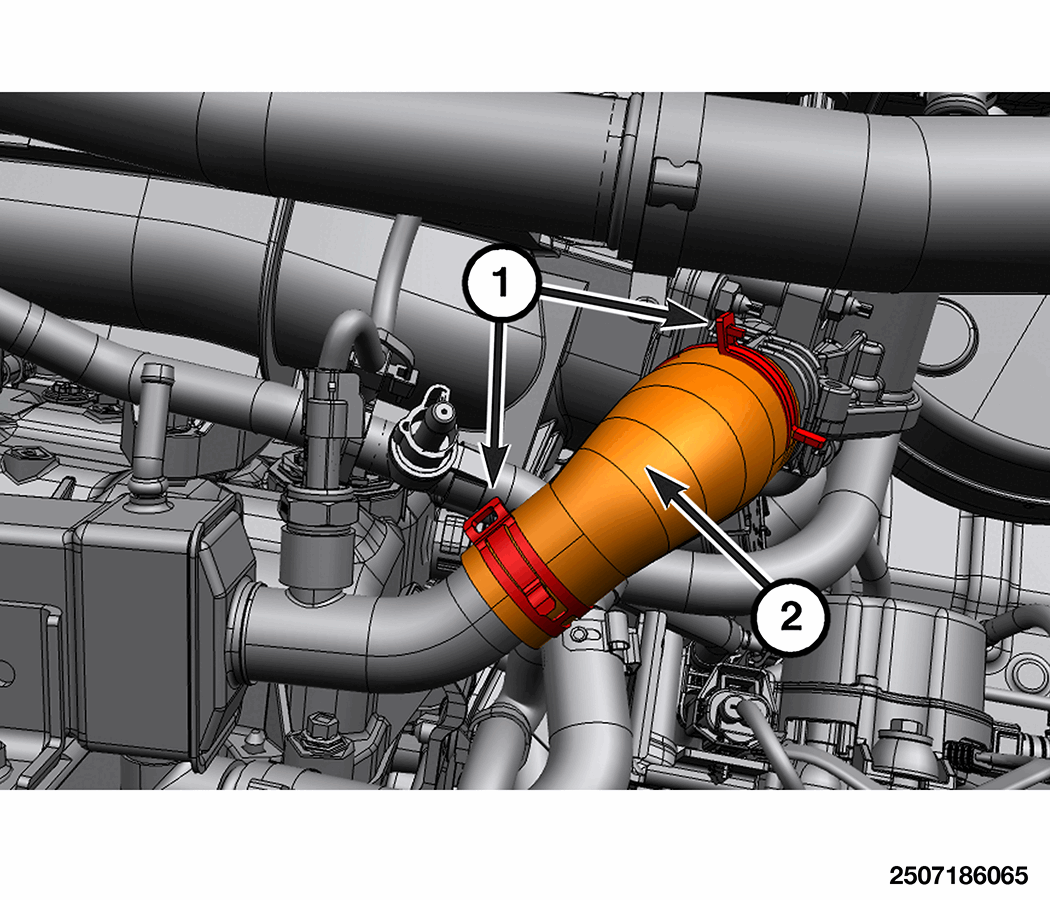

1 - EGR Tube Clamps

2 - EGR Tube

1. Install the EGR tube and secure the clamps.
2. Remove the support and lower the vehicle.
3. Reconnect and isolate the negative battery cable.
